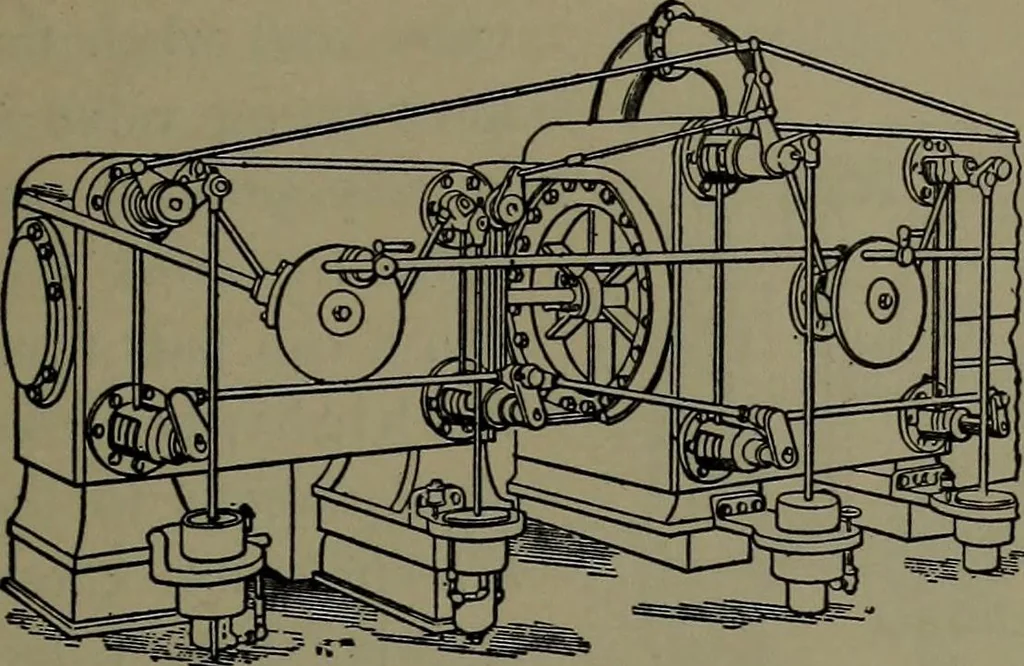

cylinder. The releasing gear of this type of engine is unique in thatinertia, centrifugal force, and the force of gravity are used to operatethe grab hook. STEAM POWER APPLIANCES. 77 151- COMPOUND . CORLISS … ENGINE. Showing Corlissvalves on low-pressure cylin-der, direct connected wristplates, one for each cylinderto operate the steam valveswhile the exhaust valves areall connected by link rods,which are in turn directlyconnected to the eccentricrod. Valve gear of both cyl-inders have trip hooks…
