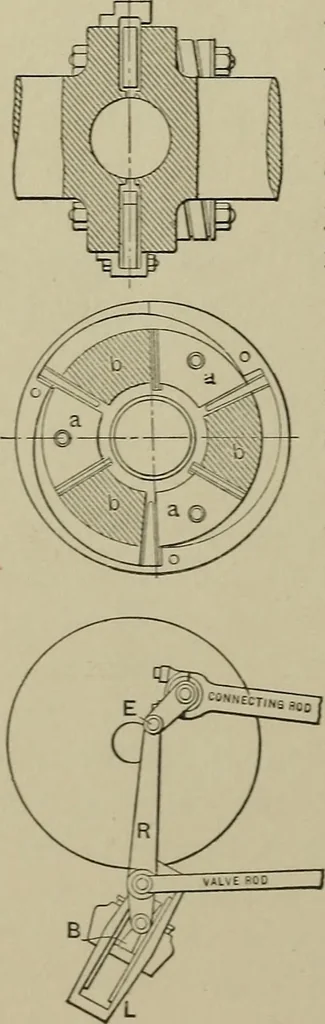

ng astern faces of thejaws, a, 011 the driving shaft, and the driven asternfaces of the jaws, b, on the driven shaft. 201. Longitudinal section, showing ball bear-ing, overlap of the jaws, wedges, and volutecap. 202. Shows the alternate jaws, wedges, andthe volute cap for tightening the wedges.… … STEAM POWER APPLIANCES. 93
