Mechanical drawing self-taught: comprising instructions in the selection and preparation of drawing instruments. Elementary instruction in practical mechanical drawing. Together with examples in simple geometry and elementary mechanism, including screw threads, gear wheels, mechanical motions, engines and boilers (1889)

Rose, Joshua · Philaelphia, H.C. Baird & co.; [etc., etc.] · leaf 107

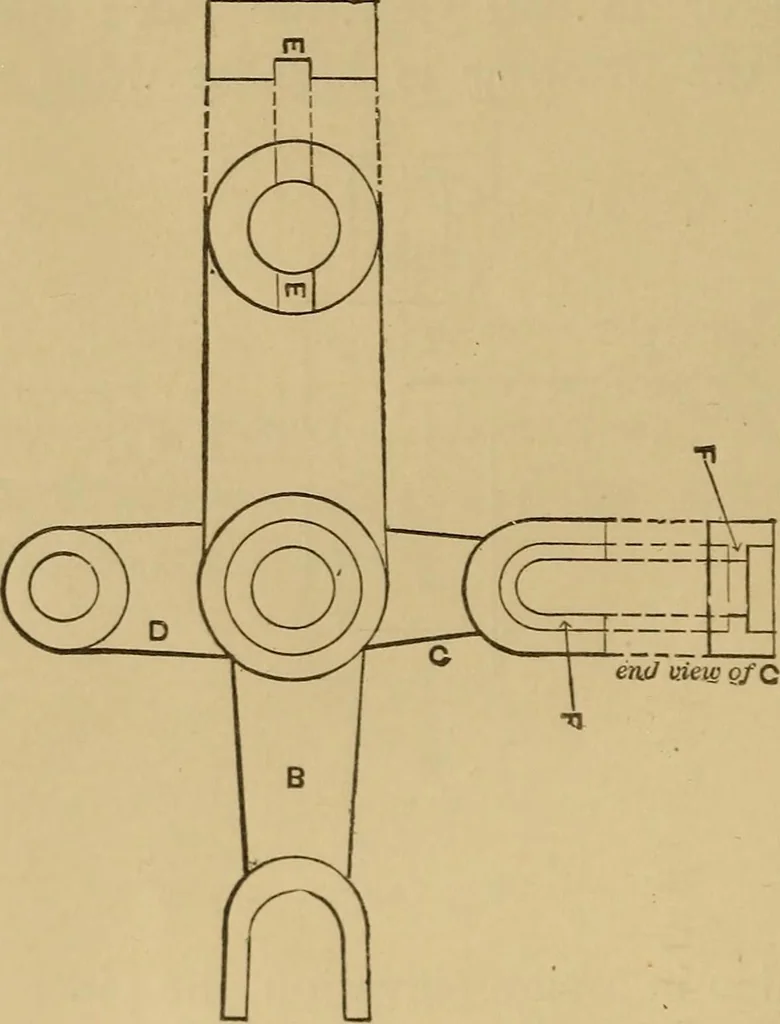

An illustration from Mechanical drawing self-taught: comprising instructions in the selection and preparation of drawing instruments. Elementary instruction in practical mechanical drawing. Together with examples in simple geometry and elementary mechanism, including screw threads, gear wheels, mechanical motions, engines and boilers, 1889, leaf 107
^ be most con-veniently done by showing them projected from theends of those parts as in the figure. This naturally brings us to a consideration as tothe best method of projecting one view from another. encf view of £ … Fig. 144. As a oreneral rule, the side elevation or side view isthe most important, because it shows more of theparts and details of the work ; hence it should bedrawn first, because it affords more assistance indrawing the other views. There are two systems of placing the different views THE…
