Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise .. (1916)
Swingle, Calvin F. (Calvin Franklin), b. 1846 · Chicago, F.J. Drake & company · leaf 920

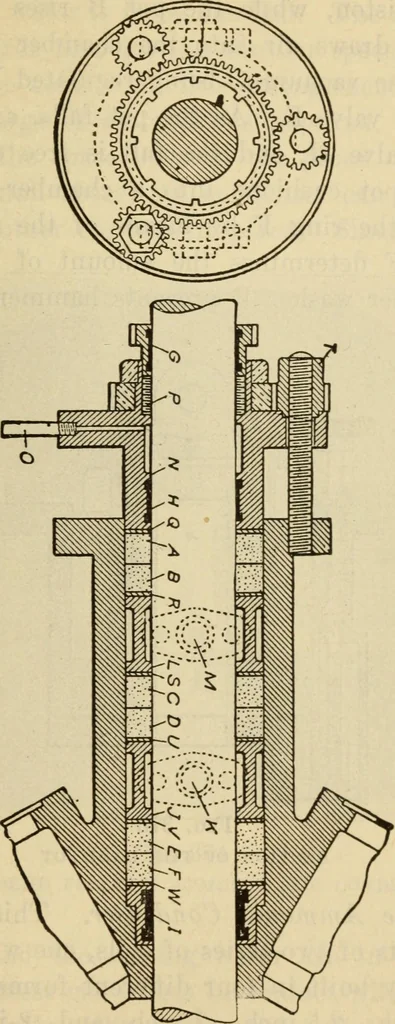

tact with the rod are G, H and I andthey are made an exact fit. If the rod becomes scoredand is turned down, these parts must be rebabbitted. Totighten the stuffing-box gland it is only necessary to ad-just the nut T, which is a pinion nut and is in meshwith the inside gear and the other two pinion… … Fig. 372stuffing-box of the double-acting compressor and connected by the usual vertical link rod to the crankon the valve stem. The central cylinder A acts as a 890 Steam Engineering guide and piston, while the pot B rises and falls, andby so doing draws air into the chamber C through thepassage…
