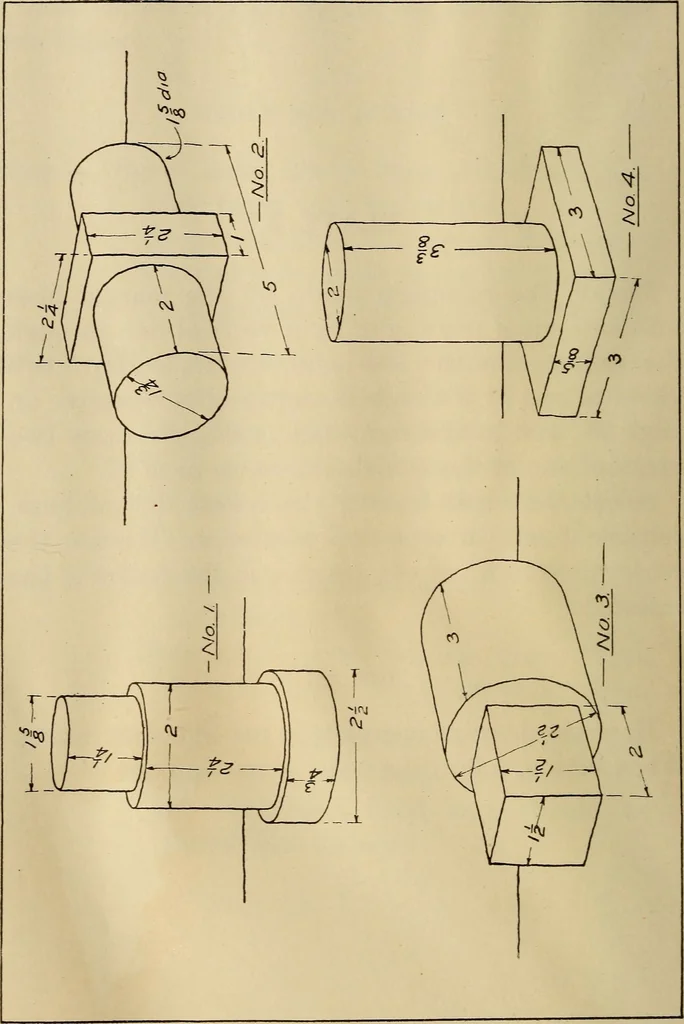

rtical line throughthe center. In the left-hand rectangle draw twoviews of one of the objects shown in perspective onpage 96, and in the right-hand rectangle draw twoviews of one of the models shown on page 97. Select the views having the fewest dotted lines,consistent with a clear representation.… … Plate 9 CYLINDRICAL WORK 97
