Mechanical drawing; a treatise on the drawing of mechanical and machine details (1920)
Jones, Franklin Day, 1879-1967 · New York, The Industrial press; [etc., etc.] · leaf 243

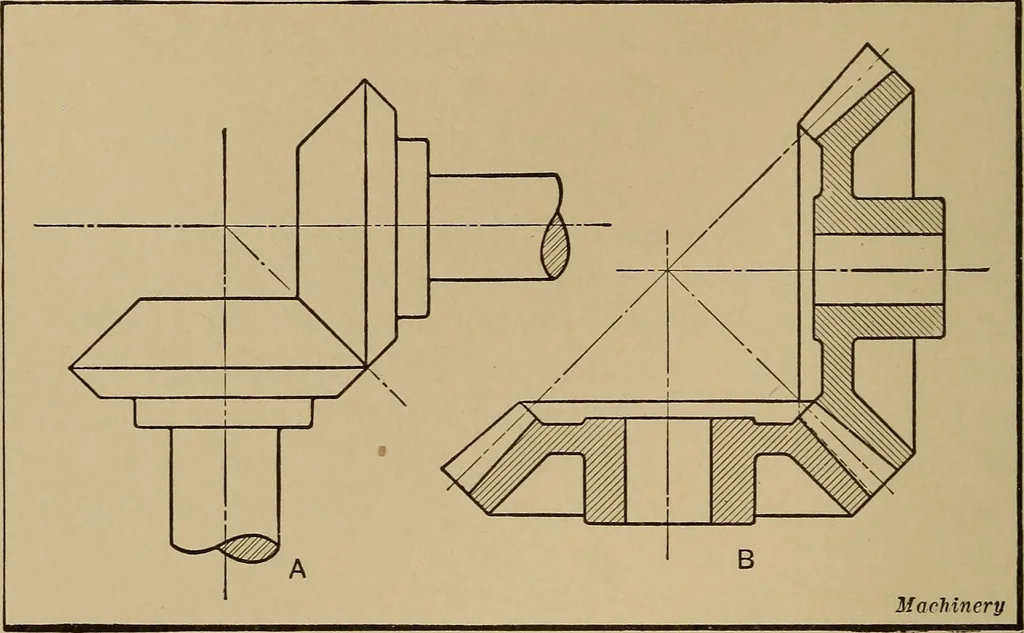

o 0.300 times the circular pitch. Drawings of Bevel Gears. — Bevel gears are often repre-sented on working drawings as though they had plain orsmooth conical surfaces instead of teeth (as illustrated at A,Fig. 19). This method is more likely to be employed whenthe bevel gears are shown on the… … Fig. 19. Two Methods of representing Bevel Gearing in the form of notes. A common method of representingbevel gears on working drawings is illustrated at B. This issimply a sectional view, and, when properly dimensioned andaccompanied by certain notes, it gives all the informationnecessary for…
Mechanical drawing
