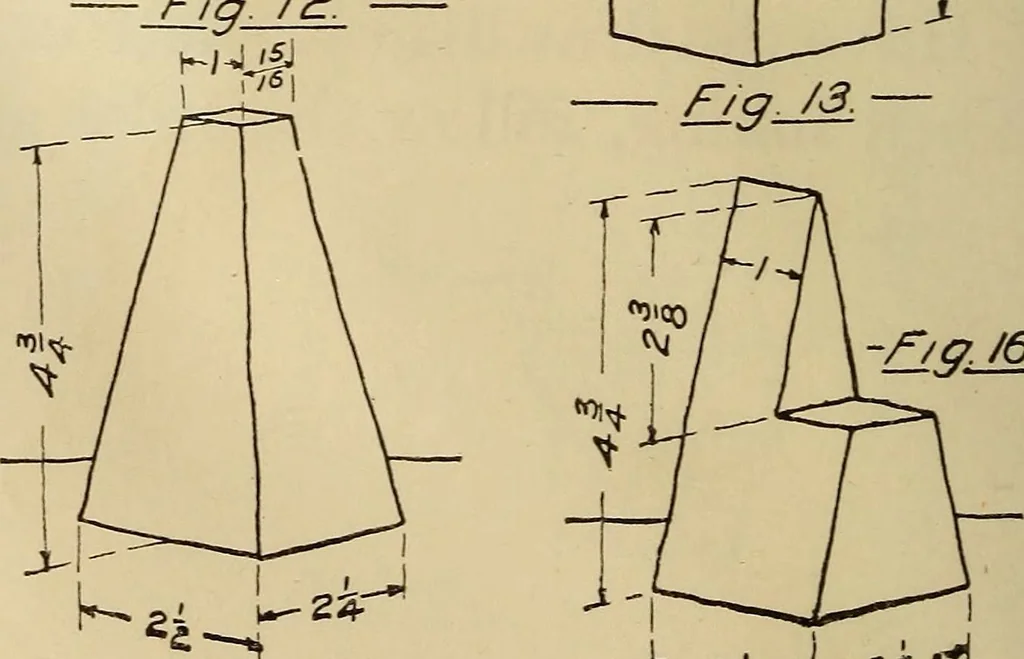

-^9J§r —^9JA — ^^=4-^ Plate 4. Extra Plate PLATE 5* Make three views—top, front, and right side—ofone of the pieces shown in perspective on pages 62to 64. The problem will occupy the entire sheet.Leave from V^ to l¥^ between the views, and locatethe drawing on the sheet with equal spaces at…
