Benjamin, Charles Henry, 1856- [from old catalog], Hoffman, James David, 1868- [from old catalog] joint author · New York, H. Holt and company · leaf 114

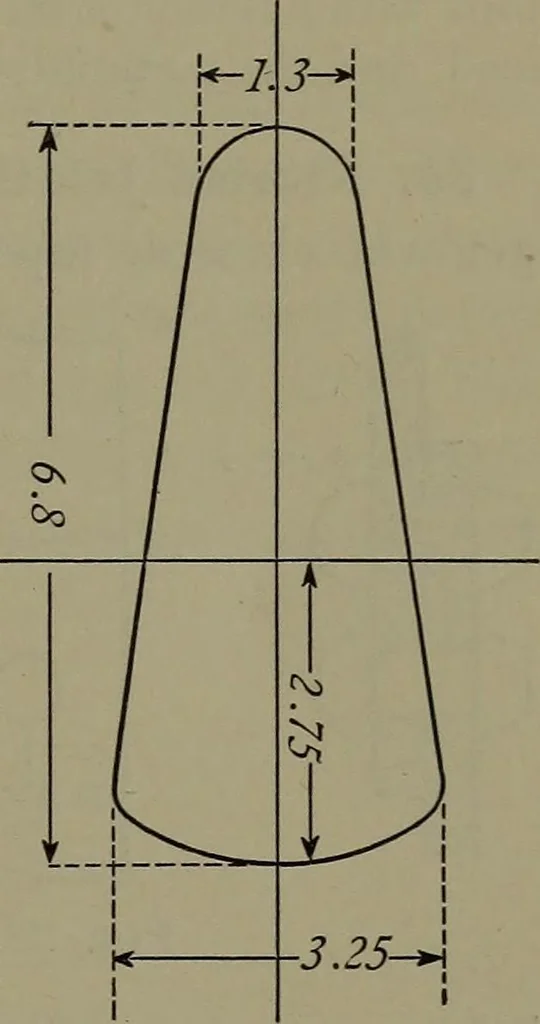

of a cross piece or strut.^ PROBLEMS 1. Discuss the effect of the initial tension caused by the screwing up ofthe nut on the bolt, in the case of steam fittings, etc.; i.e., should this tensionbe added to the tension due to the steam pressure, in determining the propersize of bolt? ^ Technical… … Fig. 27.—20-ton steelhook. 96 MACHINE DESIGN 2. Determine the number of |-in. steel bolts necessary to hold on thehead of a steam cylinder 18 in. diameter, with the internal pressure 90 lb.per square inch, and factor of safety = 12. 3. Show what is the proper angle between the handle and the jaws…
Machine design
