Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 50

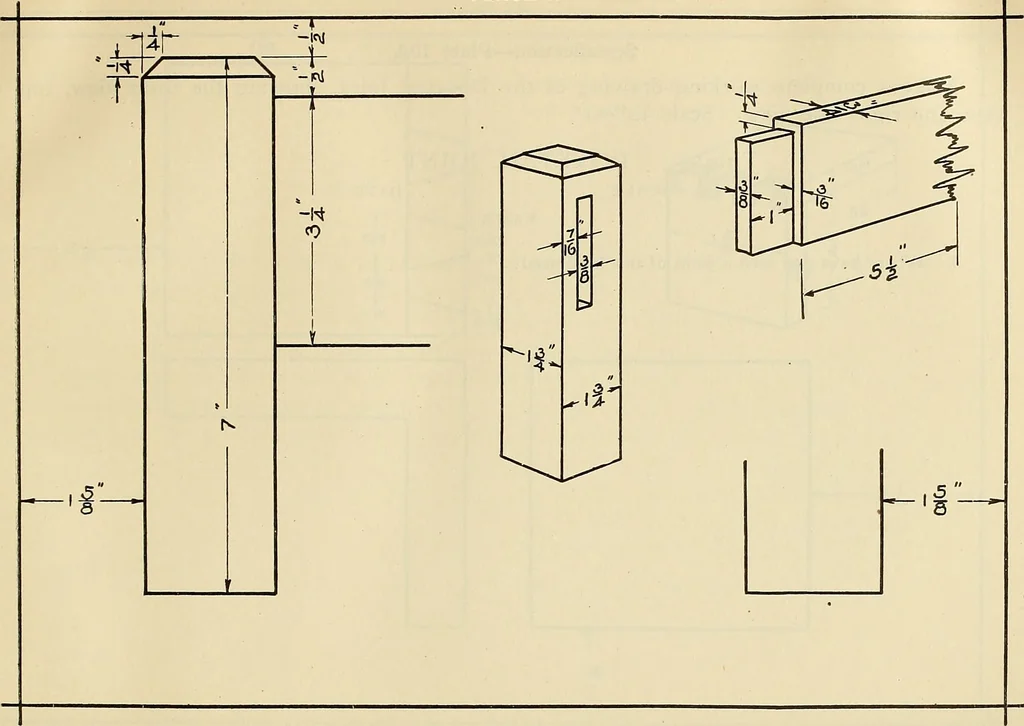

ocut the stones to proper shape and size, work from detail drawings; the builder who placesthe stones in their proper position works from an assembly drawing. Likewise, the machinistwho machines the fly-wheel works from a detail drawing; the mechanic who puts the enginetogether works from an… … 48 MECHANICAL DRAWING PROBLEMS Specification—Plate lOA. Make a complete working drawing of the Dovetail Joint, showing the front view, topview and right-side view. Scale I2==i. Title:— DOVETAIL JOINT SCALE DATE NAME 1, Where have you seen a joint of this kind used? PLATE lOA
Mechanical drawing
