Babbitt, Arthur B. (Arthur Bradford), b. 1873 · New York, H. Holt and company · leaf 41

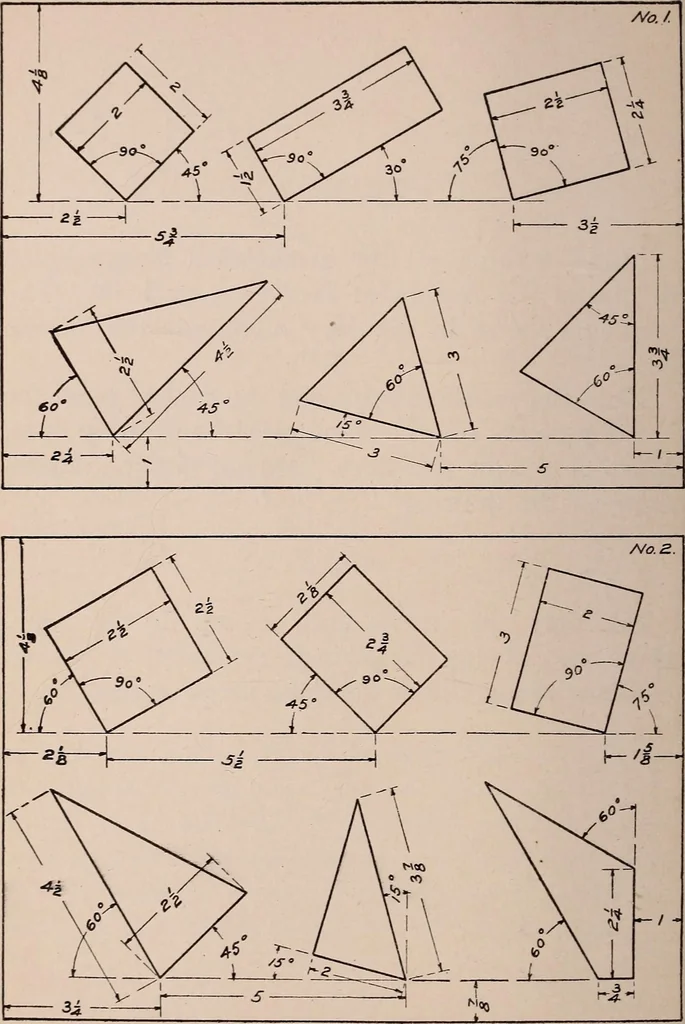

ATE 2 Make drawings of the geometrical figures givenin one of the rectangles shown on page 30. Therectangle shown in the copy represents the marginlines. Keep the pencil sharp, using the conical point forlocating points and the chisel point for drawing lines.Make very light, fine lines. Do not put… … Plate 2 CHAPTER VI WORKING DRAWINGS PLATES 3 AND 4 If we look at an object through a transparent planeand trace the outline as seen upon that plane, theresult is a perspective drawing of the object. Therelation of the object to the plane determines thecharacter of the drawing, and as the observer…
Mechanical drawing
Internet Archive · University of Connecticut Library · Public Domain Mark 1.0. Free to use for anything.
