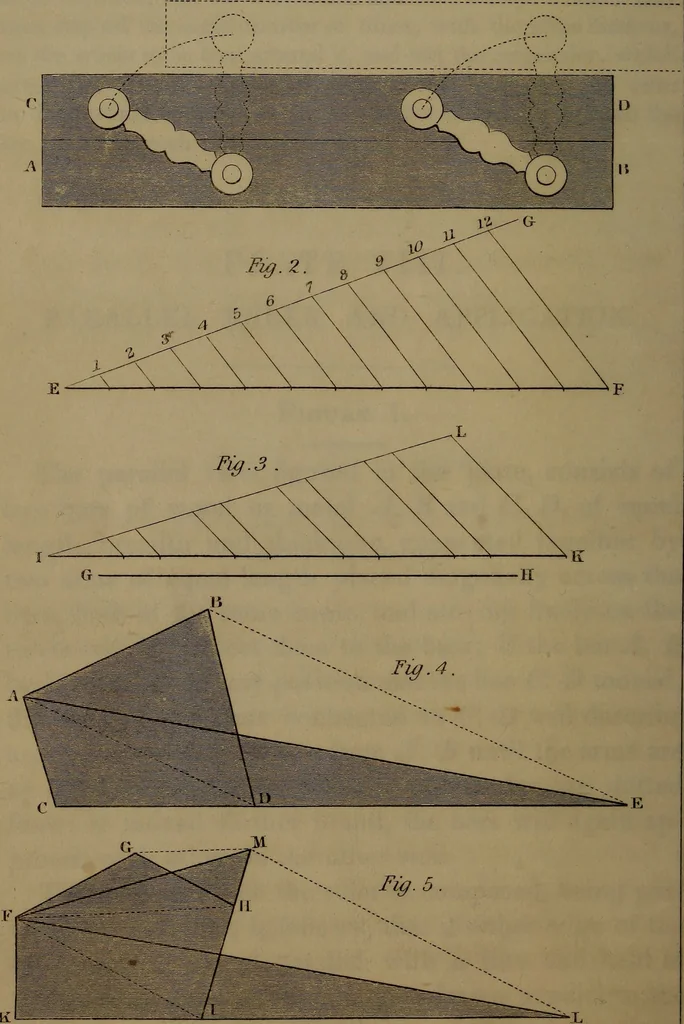

les and recede from A. B until the arms areat right angles to the bars, as shewn by the dottedlines; if moved farther round, the bars will again ap-proach each other on the other side. The bars of which the ruler is composed, being par-allel to each other, it follows, that if either edge of… … W^MuufLf.. Wntxi/i 1:Sl PLATE ViU. 35 This is its most obvious use; it is generally applied tothe drawing of inclined parallel lines in mechanicaldrawings, vertical and horizontal lines being moreeasily drawn with the square, when the drawing is at-tached to a drawing board. Application.—Problem…
