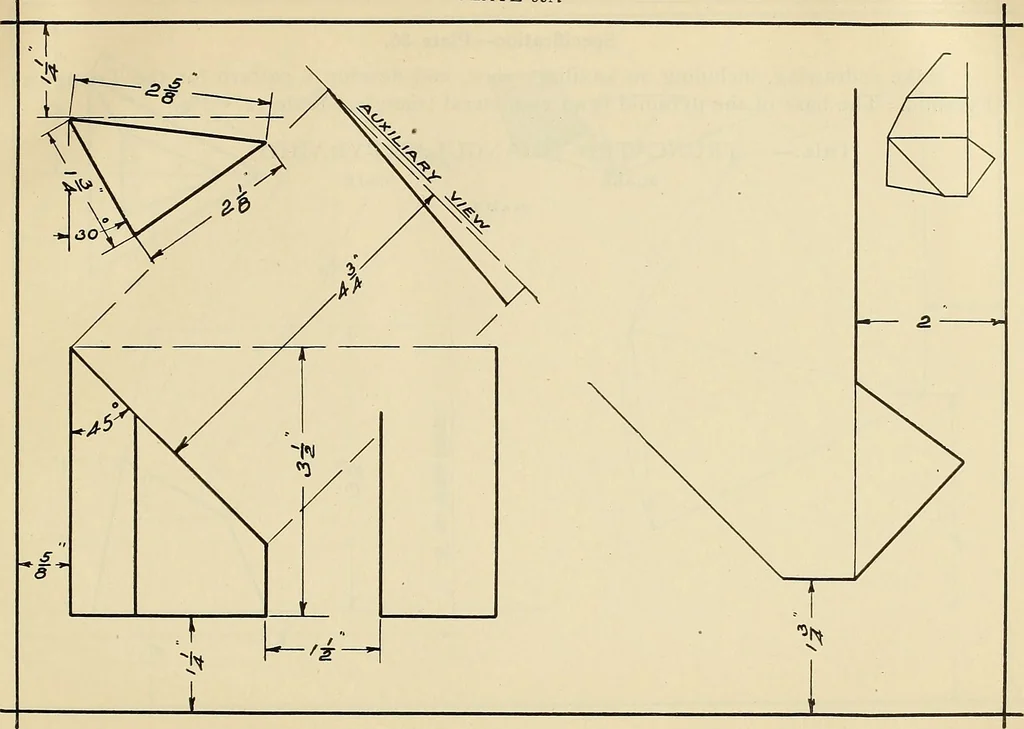

130 MECHANICAL DRAWING PROBLEMS Specification—Plate 35A. Make a drawing, including an auxiliary view, and develop a pattern for the TriangularPrism. Scale I2=i. Title:— TRUNCATED TRIANGULAR PRISM SCALE DATE NAME PLATE 35A … 132 MECHANICAL DRAWING PROBLEMS Specification—Plate 36. r\Iake a drawing, including an auxiliary view, and develop a pattern for the TriangularPyramid. The base of the pyramid is an equilateral triangle. Scale I2=i. Title:— TRUNCATED TRIANGULAR PYRAMID SCALE ^ATE PLATE 36
