Babbitt, Arthur B. (Arthur Bradford), b. 1873 · New York, H. Holt and company · leaf 63

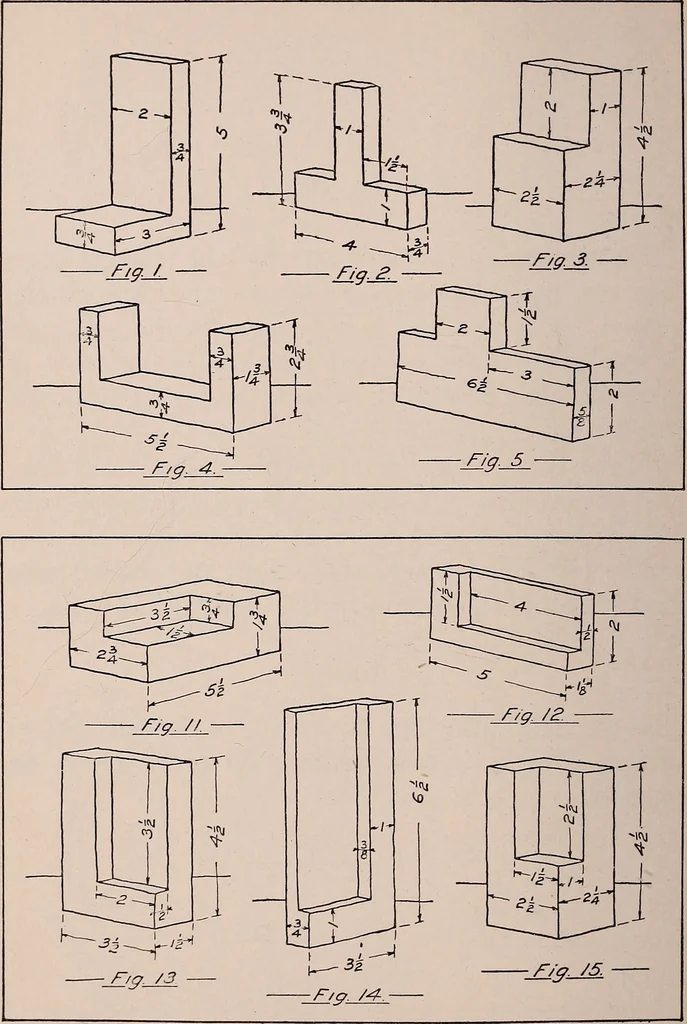

ft will be selected from the upper part ofpage 52, that for the right-hand rectangle from thelower part of the same page. Make three views, complete with dimension linesand dimensions. If possible, leave at least 1 be-tween the views and locate the drawing in the rec-tangle with equal spaces at the… … Plate 3. Extra Plate CHAPTER VII OBJECTS WITH OBLIQUE SURFACES PLATES 4, 5, AND 6 In rectilinear objects, such as we have presentedin Plate 3, the parallel lines of sight producing theviews are at right angles to the surfaces drawn,thereby giving views which are exact reproductionsof the surfaces…
Mechanical drawing
