Babbit, Arthur B · New York, H. Holt and company · leaf 63

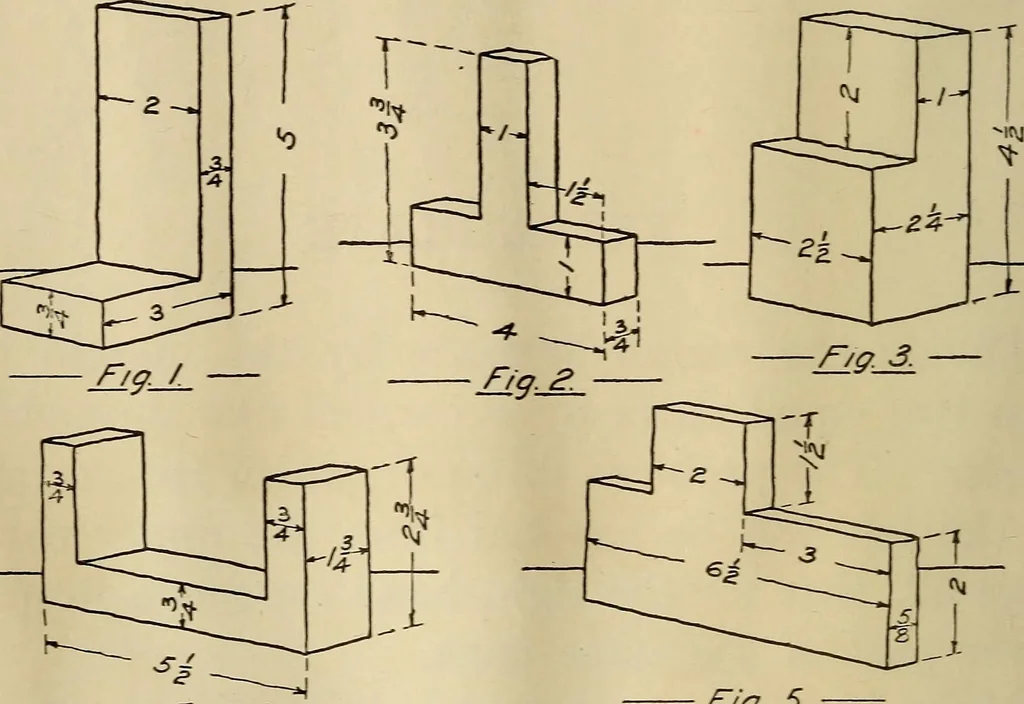

t will be selected from the upper part ofpage 52, that for the right-hand rectangle from thelower part of the same page. Make three views, complete with dimension linesand dimensions. If possible, leave at least V^ be-tween the views and locate the drawing in the rec-tangle with equal spaces at the… … F/g. a. - Fig. 5 -
Mechanical drawing
