Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 104

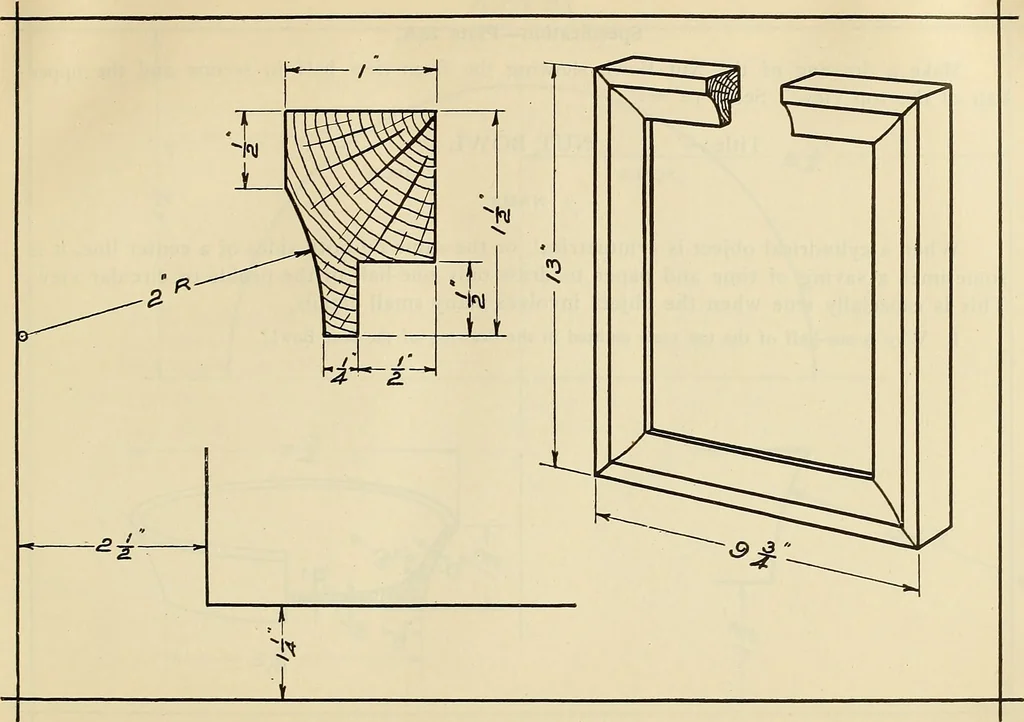

Picture Frame, showing the front view and the side view in sec-tion. The full-size detail shows a section of the molding which is used to make the frame.Scale 6=i. Title:— PICTURE FRAME SCALE DATE NAME In small picture frames the joints are generally glued and nailed. Holes should be drilledfor the… … 102 MECHANICAL DRAWING PROBLEMS Specification—Plate 28A, Make a drawing of the Xut Bowl, showing the front-view half in section and the upperhalf of the top view. Scale I2=i. Title:— NUT BOWL SCALE DATE NAME When a cylindrical object is symmetrical, or the same on both sides of a center line, it…
Mechanical drawing
