Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 142

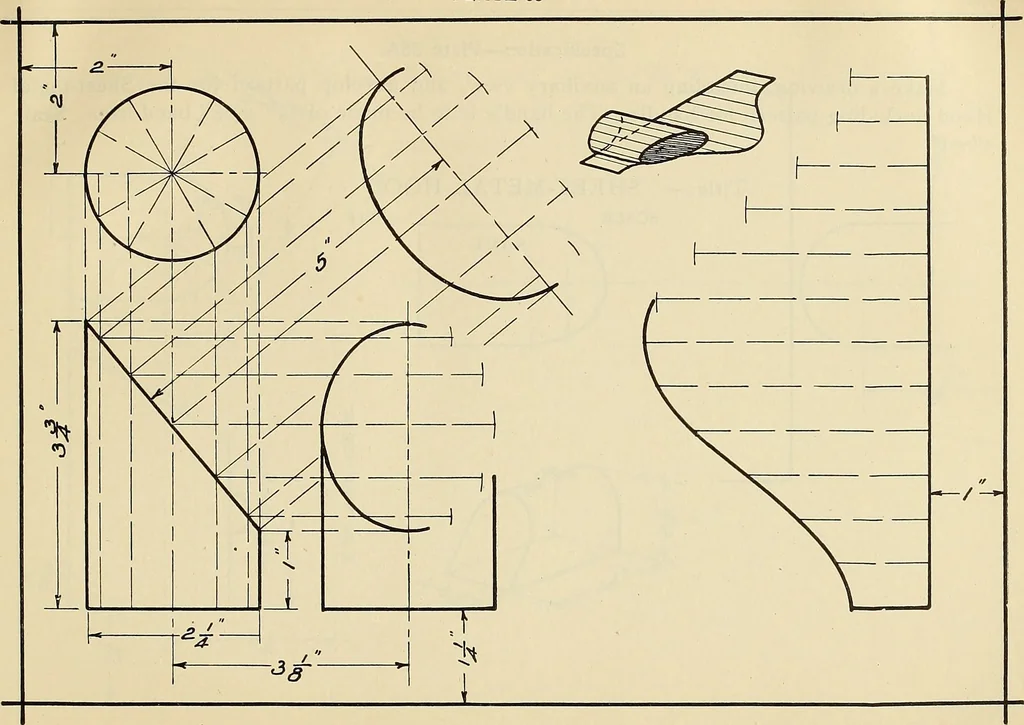

138 • MECHANICAL DRAWIXG PROBLEMS Specification—Plate 38. Make a drawing, including an auxiliary view, and develop a pattern for the TruncatedCylinder. Scale I2=i. Title:—TRUNCATED CYLINDER SCALE DATE NAME PLATE 38 … I O • MECHANICAL DRAWING PROBLEMS Specification—Plate 38A. Make a drawing, including an auxiliary view, and develop pattern for the Sheet-metalHood, including pattern for handle. The hand.e is to l)e made of s x y^^ band iron. Scale ^i. Title:— SHEET-METAL HOOD SCALE DATE NAME PLATE 38A
Mechanical drawing
