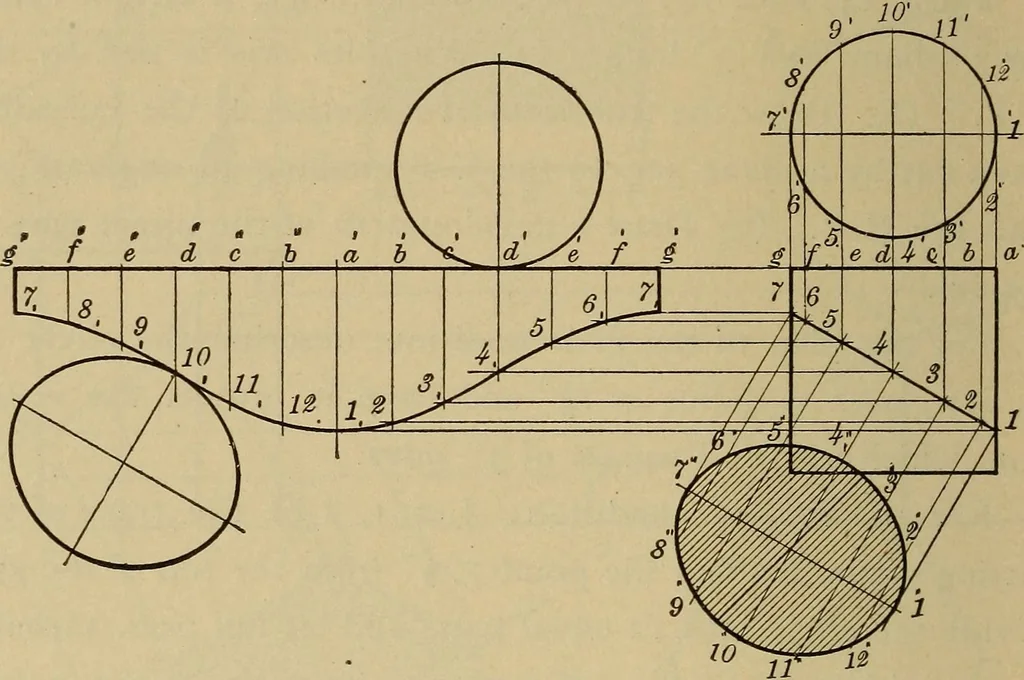

parts a, b, etc., a, b,etc. Through these points drop pers. and through the points 02 MECHANICAL DRAWING. I, 2, 3, etc., draw hors. intersecting the pers. in the pointsI, 2, 3, etc., and through these points draw a curve. Tangent to any point on the straight line draw a 3 circlefor the top of the… … Fig. 127. diam. and 5 long their axes intersecting at right angles 3above the base of the cone and par. to V.P. Draw first theplan of the cone with a radius = 3. At a convenient distance below the plan draw the elevationto the dimensions required. 3 above the base of the cone draw the center line…
