Babbit, Arthur B · New York, H. Holt and company · leaf 68

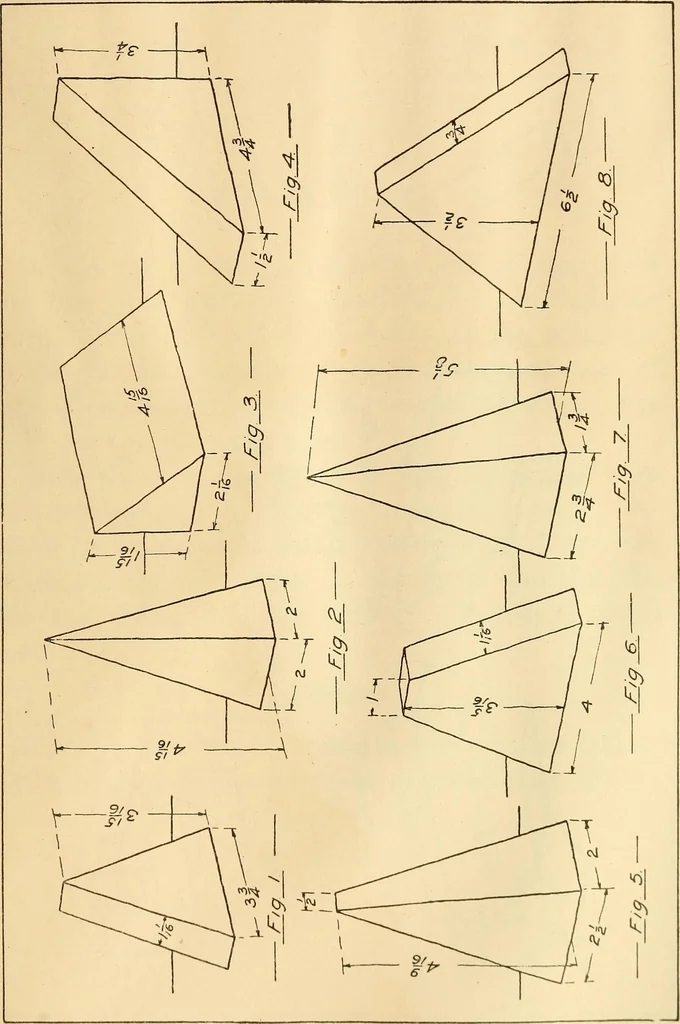

n, respectively, fromfigures shown on pages 57 and 58. The problems willbe selected by the instructor. ]\Iake three ^dews, complete with dimension linesand dimensions. If possible, leave at least 1 be-tween the views, and locate the draT\dng in the rec-tangle ^dth equal spaces at the right and the… … Plate 4 58 MECHANICAL DRAWING
Mechanical drawing
