Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 166

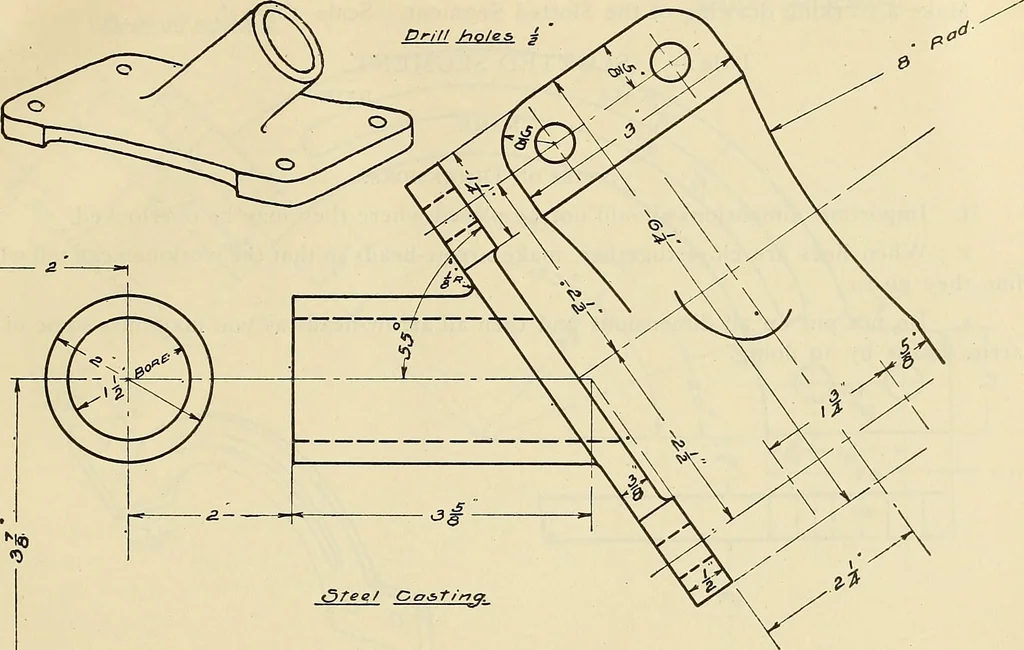

nformation and would make the drawing less clear if indi-cated. The pads upon which the support rests and the end of the cylindrical boss, are tobe faced. Scale I2=i. Title:— STEERING COLUMN SUPPORT SCALE D.XTE NAME AuxiLL\RY Views. It will be noticed in the drawing of the Steering Column Support… … 164 MECHANICAL DRAWING PROBLEMS Specification—Plate 44A,Make a working drawing of the Slotted Segment. Scale I2=i. Title:— SLOTTED SEGMENT SCALE DATE NAME Notes on Dimensions. 1. Important dimensions should not be placed where they may be overlooked. 2. AAhen lines are close together, make…
Mechanical drawing
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
