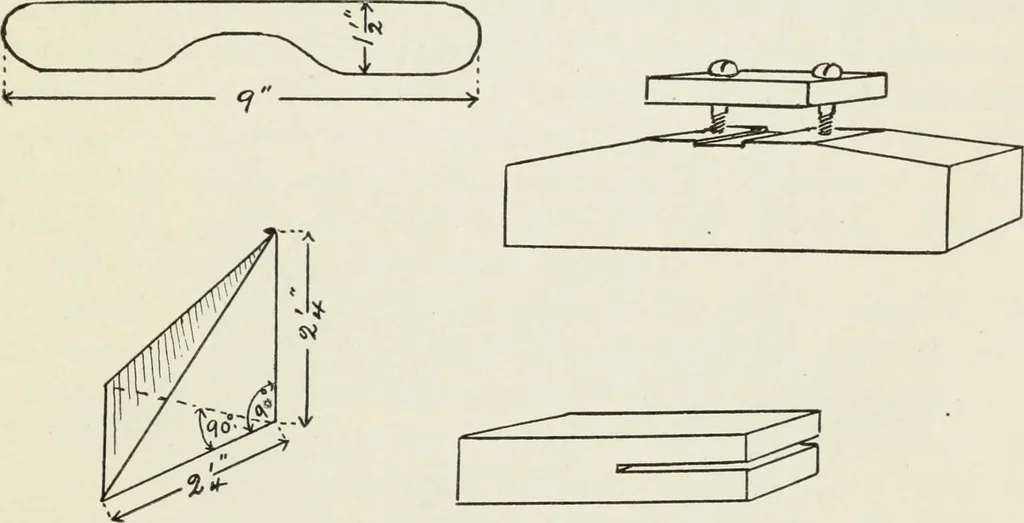

wood about 1^ wide and any length. Set it up PROPELLERS, MOTORS, GEARS AND WINDING DEVICES 123 edgewise. Make a cut ^V ^^^P ^^ ^^ ^h long across the upperedge, Fig. 256, and screw a small piece over top as a clamp. Afterthoroly steaming the propeller blade until it is very pliable, insert itinto… … Figs. 255, 256, 257, 258. remove, and reverse the ends, being sure to keep the straight edge tothe front, or the same as before. To be accurate, there must be a guideblock to bend to. For a nine-inch propeller, a block like Fig. 257would be about right. Place guide in position, press blank down…
