Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 34

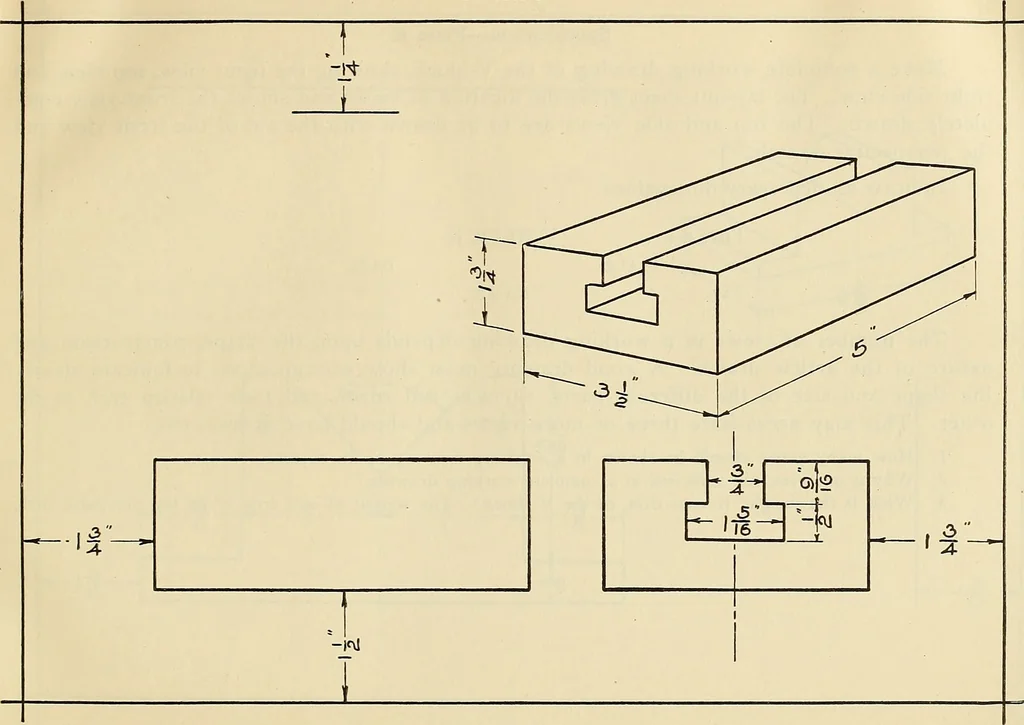

n object can be used as the front view. It is customary, however, to placethe object in its natural position and to use that side which shows clearly the most detail forthe front view. When the front view has been determined upon, the top and side viewsmust be drawn in their proper relation to it.… … 32 MECHANICAL DRAWING PROBLEMS Specification—Plate 6. Make a complete working drawing of the V-block, showing the front view, top view andright-side view. The lay-out sheet gives the location of views and shows the front view com-pletely drawn. The top and side views are to be drawn with the aid of…
Mechanical drawing
