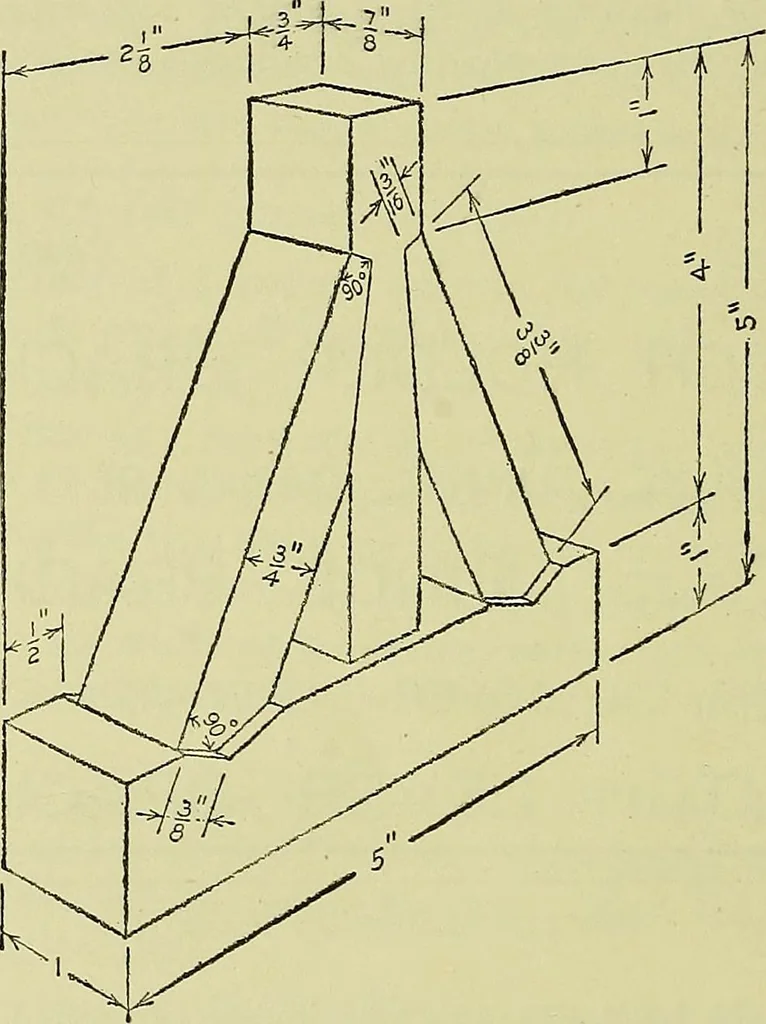

he lines exactly at their intersections. Dot the linesrepresenting hidden edges. 7. Draw extension and dimension lines and put in dimensions. 142 MECHANICAL DEAWING 8. Letter a note, giving the number of parts required andthe material from which they are to be made. 9. Letter the title, using the… … Fig. 146. Type Problem. Perspective of Brace PREPARATORY INSTRUCTIONS FOR DRAWING PLATE 14 In this plate the student will need to decide for himself thenumber of views necessary, and their arrangement, to show theform of the object. It is suggested that for this purpose hereview the principles…
Mechanical drawing
