Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 40

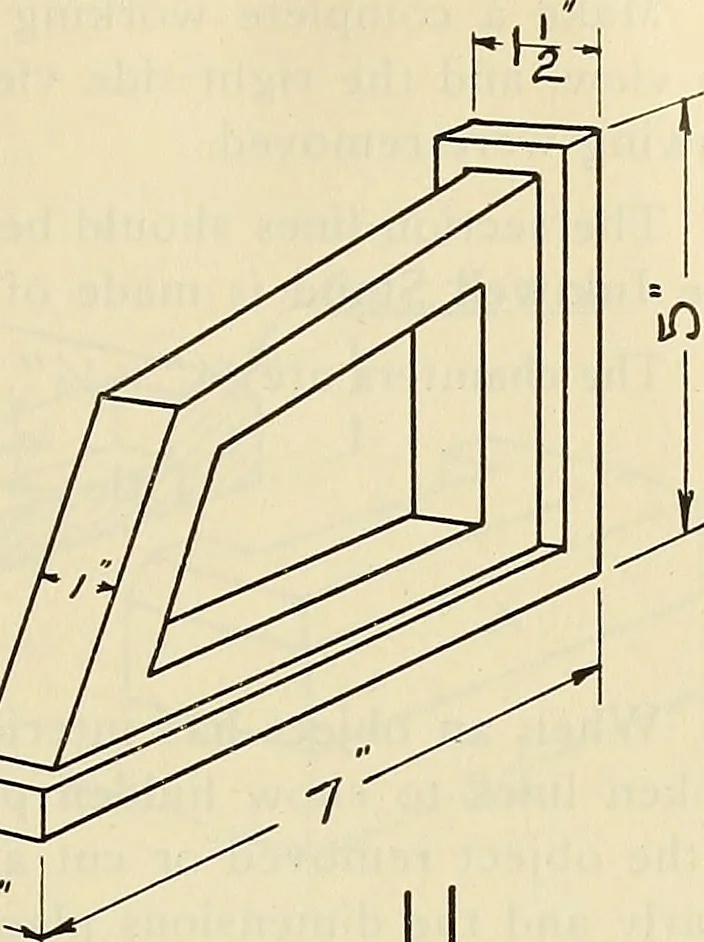

help of the perspective sketch, make a complete working drawing of the Brace,showing the front view, top view and right-side view. Indicate all necessary dimensions.Scale I2=i. Title:— BRACE SCALE DATE NAME Notes on Dimensioning. 1. Dimensions should read from the bottom and the right side of the… … T,8 MECHANICAL DRAWING PROBLEMS Specification—Plate 8. Make a complete working drawing of the Ink-well Stand, showing the front view andtop view, and the right-side view in section or as it would be seen if part A in the picturedrawing were removed. The section lines should be drawn light, and…
Mechanical drawing
