Babbit, Arthur B · New York, H. Holt and company · leaf 84

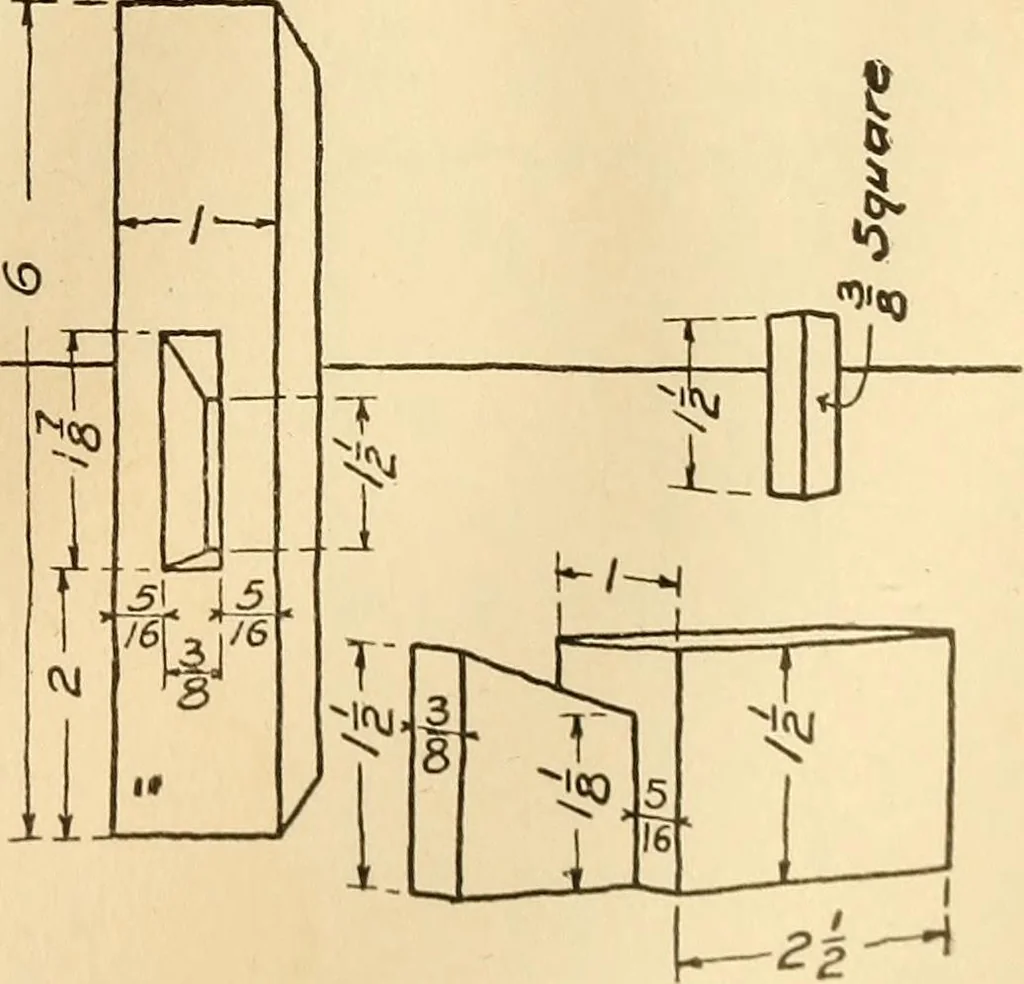

- Do\/efai/ Drai/vcr Joint. — … Plate 7 EXTRA PLATE On pages 75 and 76 are given detail dramngs ofparts of woodworking models. ]\Iake assemblydrawing^ showing the construction in full lines, ifpossible. One problem will occupy an entire sheet. INKING Have the drawdng complete in pencil before inking.\\Tien inking, follow the…
Mechanical drawing
