Small engines and boilers; a manual of concise and specific directions for the construction of small steam engines and boilers of modern types ... for amateurs and others interested in such work (1899)
Watson, Egbert P. (Egbert Pomeroy) · New York, D. Van Nostrand company · leaf 23

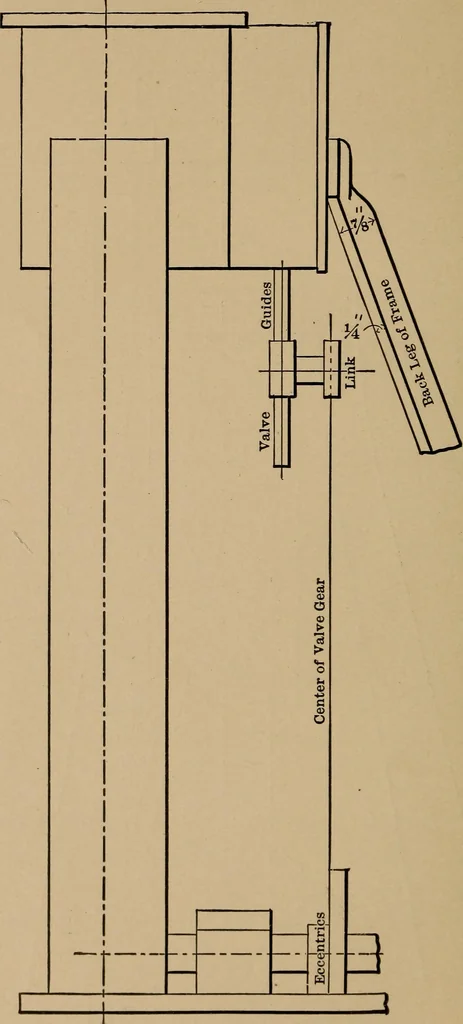

Fig. x. SMALL ENGINES AND BOILERS. … Fig. 2. SMALL ENGINES AND BOILERS. 7 ing in its incipiency. The first thing- is to drawthe centre and base lines. Suppose we mean tomake a vertical engine of any size— 2-inch cylin-der by 3- or 4-inch stroke ; then we draw thecentre line A, which shows the centre of thecylinder, and at the bottom…
