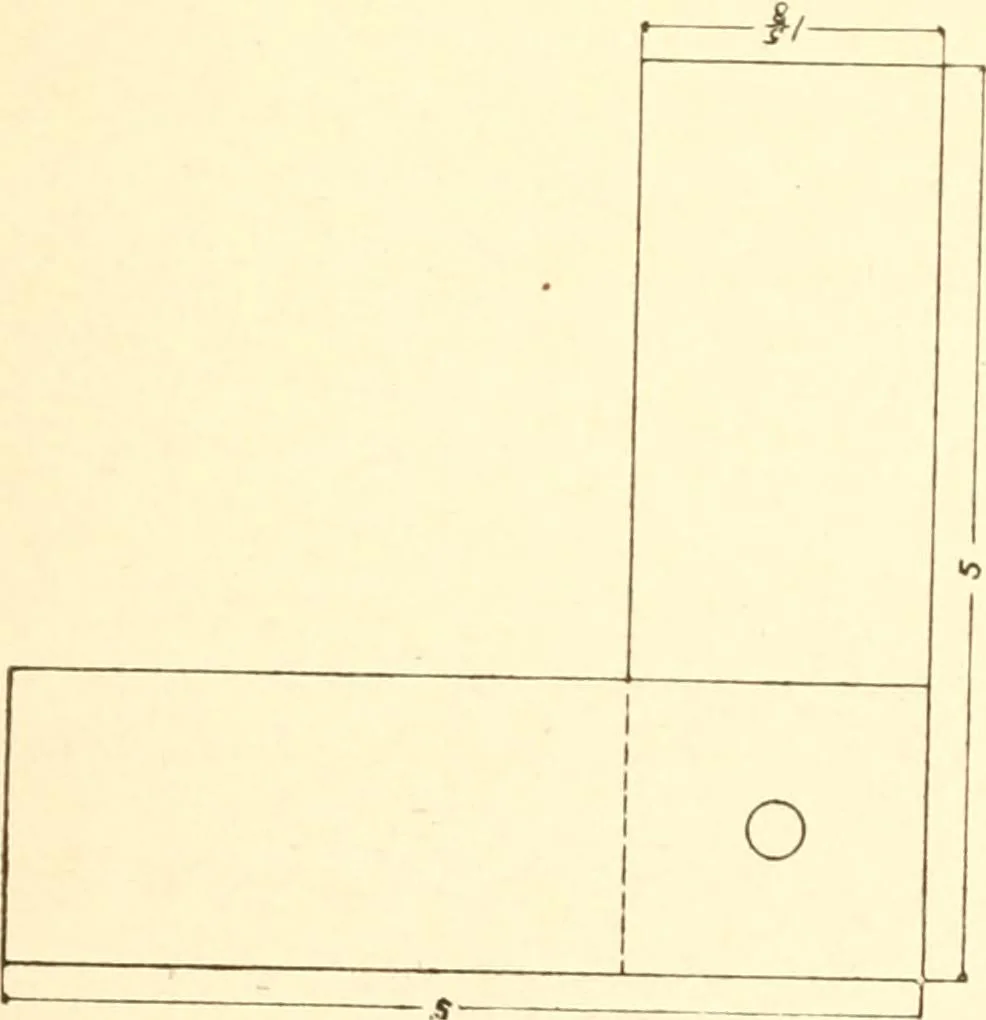

aken to the instructor, to be cut MANUAL TRAINING 2,1 into two parts and put together. The marking of the joint willbe according to its correctness. After the workmanship hasbeen considered by the instructor, the two pieces must be fas-tened together with a wooden pin 5/16 inch round at thecenter… … —i—1 *f ,r. l—U-J — a-- rig. 56. the surfaces to be numbered as in the preceding exercises.Place the try square across the piece i j^ inches or more fromthe end, with the body of the square held against surface No. ior 2. Draw a line with the knife. Square this line around thepiece. Treat the other…
