Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 78

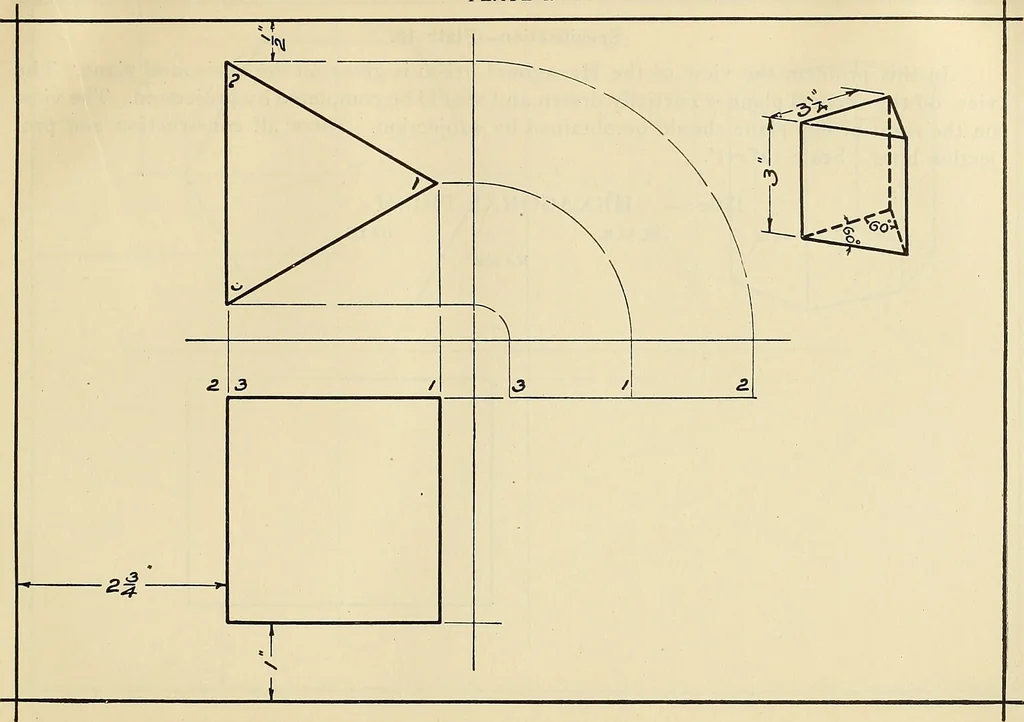

V/£.\NS OB>TA^INBrD IBY PFjO^BC-T/OM. FRONT \/tEW, TOP WgW, RIGHT amq LE.FTSIDE Vyg.W3. ilECHAXICAL DRAWING PROBLEMS Specification—Plate 17. In this problem two views of the Triangular Prism are given; the view on the verticalplane and the view on the horizontal plane. Obtain the view on the… … 76 MECHANICAL DRAWING PROBLEMS / Specification—Plate 18. In this problem the view of the Hexagonal Prism is given on the horizontal plane. Theview on the vertical plane is partially drawn and should be completed by projection. The viewon the right profile plane should be obtained by projection.…
Mechanical drawing
