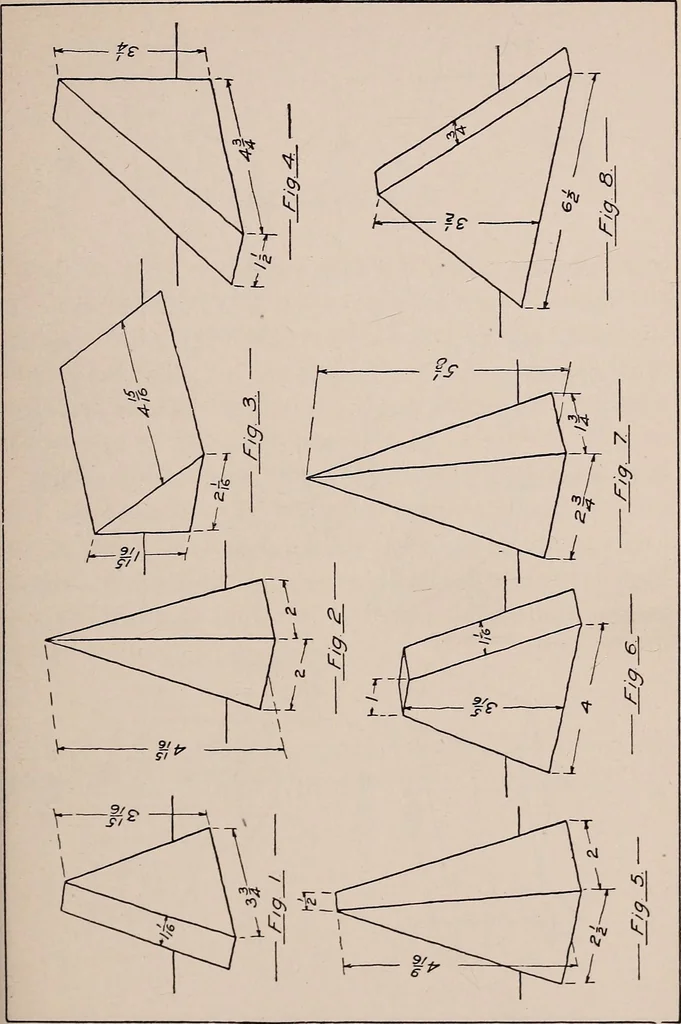

taken, respectively, fromfigures shown on pages 57 and 58. The problems willbe selected by the instructor. Make three views, complete with dimension linesand dimensions. If possible, leave at least \ be-tween the views, and locate the drawing in the rec-tangle with equal spaces at the right and the… … Plate 4 58 MECHANICAL DRAWING
