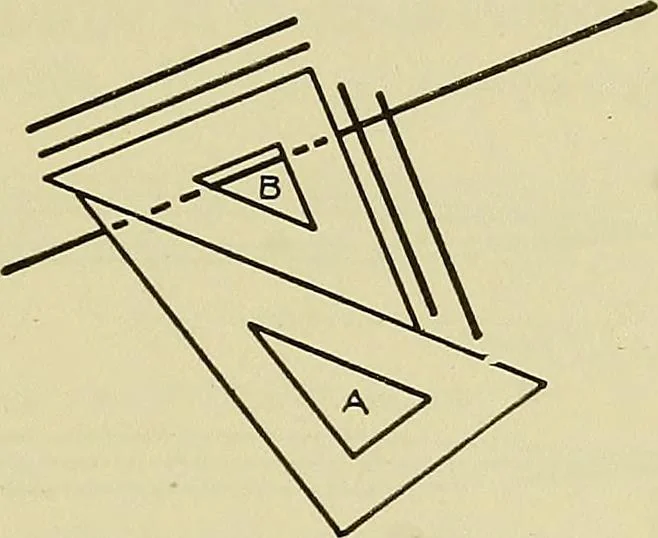

Fig. 132. Lines Drawn Parallel or Perpendicular to Any Given Line Lines perpendicular to the given line may be drawn alongthe edge of triangle B which is at 90° to the given line. The direction in which lines should be drawn along thetriangles is shown in Figs. 129 and 130. The forearm shouldalways…
