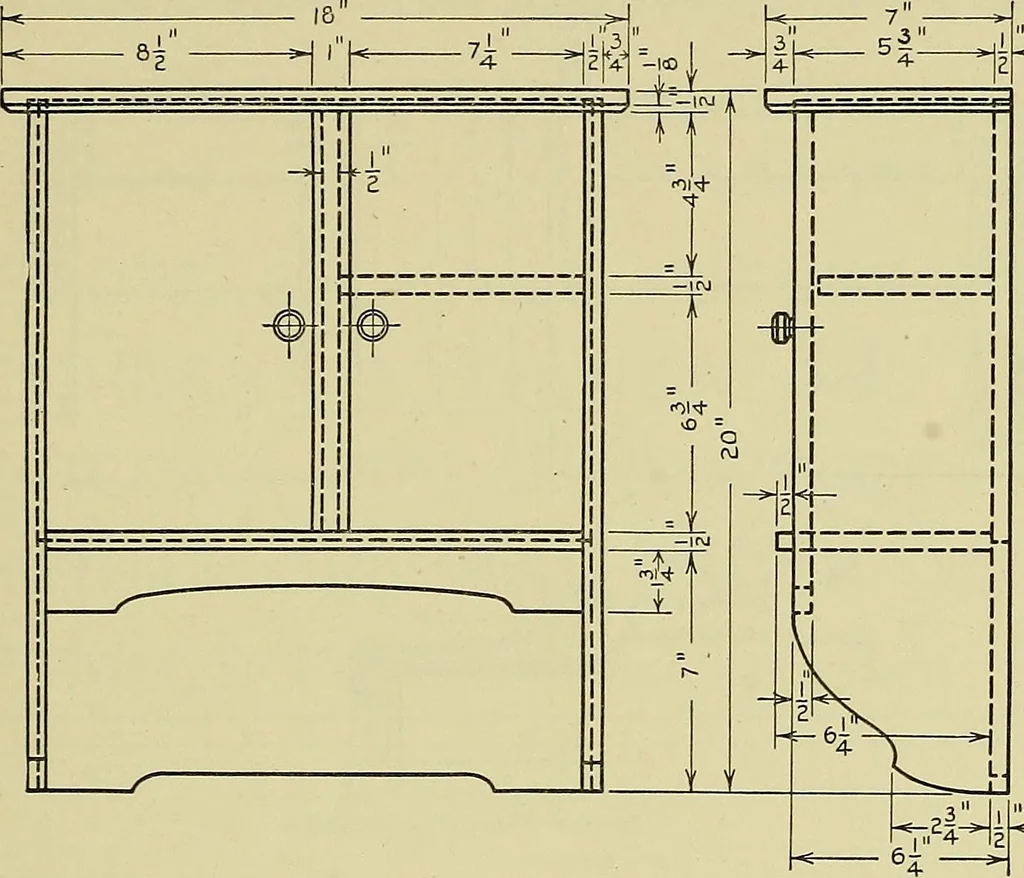

or the tracings. DATA FOR DRAWING PLATE 18 Given: Orthographic drawings, Figs, 169, 170, 171. Required: To make a pencil mechanical drawing of theobject shown in Fig. 169, 170, or 171 as assigned by the in-structor. The views given and required may be obtained fromthe following statements. Any… … Fig. 170. Medicine Cabinet Given: Fig. 170. The front and right side views.Required: To draw the front and left side half section views. Given: Fig. 171. The front and right side views.Required: To draw the front, and left side half section. Instructions : Proceed as for the mechanical drawing…
Mechanical drawing
