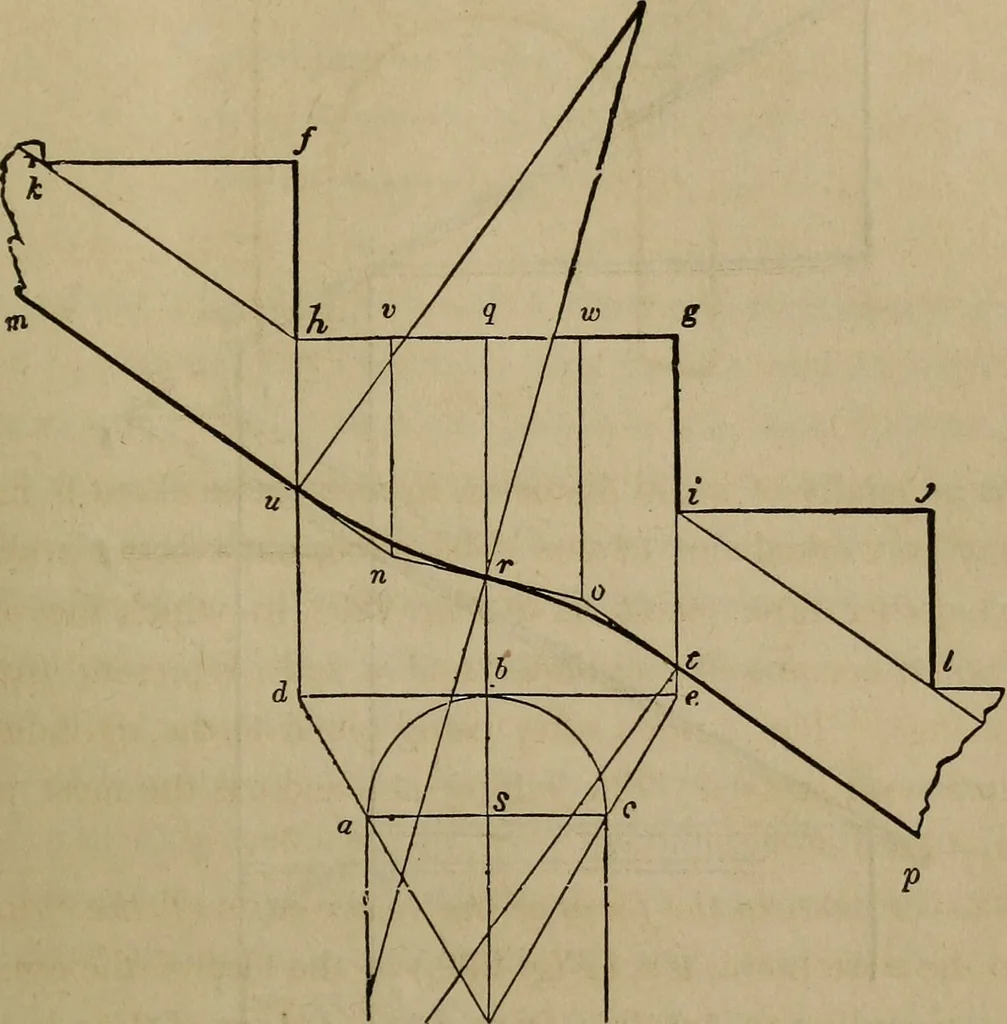

ts, as atV and to; from v andw?, draw v n and lo o, parallel tofd; join nand 0, cutting q s in r ; then the angles, u n r and r o t. beingeased off according to Art. 89, will give the proper curve for thebottom edge of the cylinder. A centre may be found upon whichto describe these curves thus :… … Fig. 290. 459.— To find the position for the balusters. Place thecentre of the first baluster, ih. Fig. 291,) I its diameter from theface of the riser, c c?, and i its diameter from the end of the step,e d ; and place the centre of the other baluster, a, half the treadfrom the centre of the first.…
