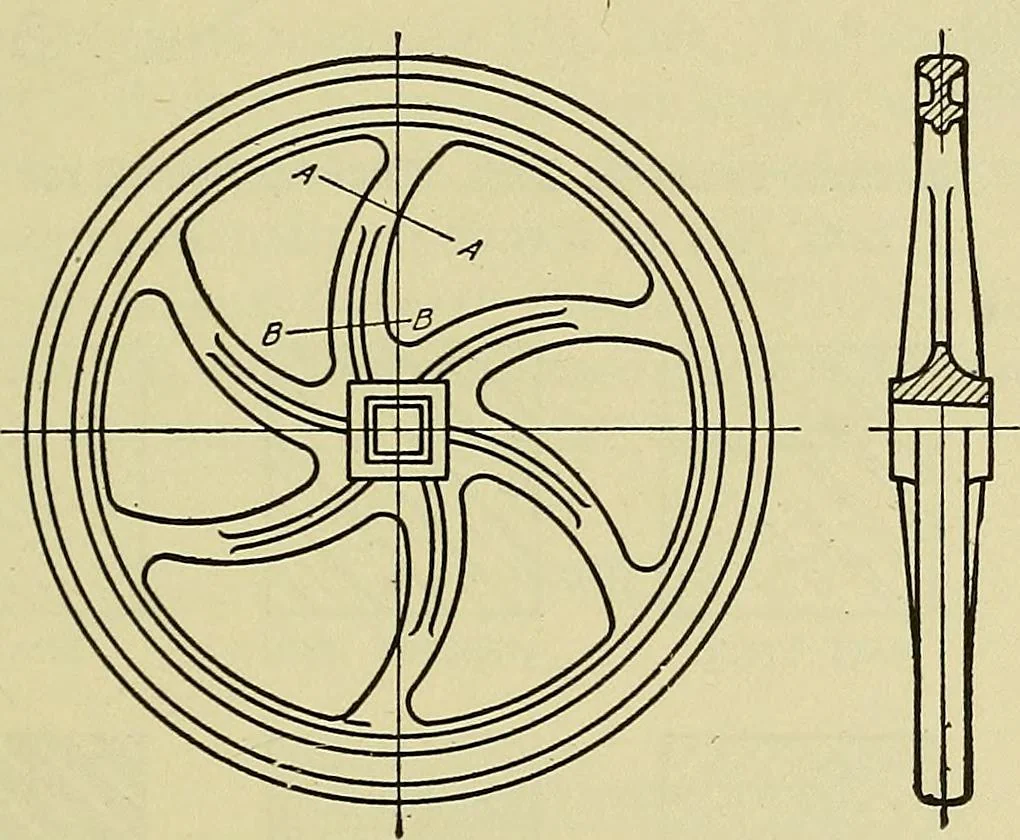

Fig. 255. Revolved Section Various combinations of lines are used to represent sections ofdifferent materials. No standard section notation has ever beenuniversally adopted. It is customary to add a note giving the … Section A A Section BB Fig. 256, Removed Sections name of the material unless a local section notation is in use.Except for a few cases where it is desirable to distinguish betweenthe metals in adjacent parts, such as the babbit and the castingof a bearing, nothing is gained by using characteristic…
