Crawshaw, Fred D. (Fred Duane), b. 1874, Phillips, J. D. (James David), 1869- joint author · Chicago, New York, Scott, Foresman and company · leaf 27

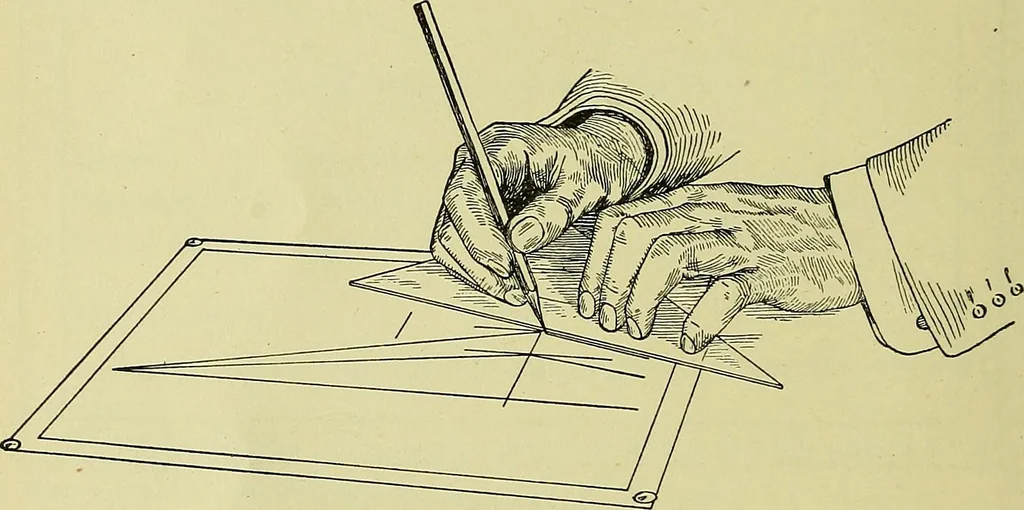

arp instrument,press the paper back into the thumb tack holes. The Method of Developing Lettering in the Course. One ofthe most difficult steps in making a drawing is the lettering ofthe notes, dimensions, and title. In this course lettering will beomitted from all drawings until the student has… … Fig. 12. Sketching the Angles op Inclination Lettering Modern practice demands that the lettering done on workingdrawings be simple, legible, and capable of easy and rapid ren-dition. The simple Gothic style fulfils these requirements andis therefore quite generally used. Form and Proportion. A…
Mechanical drawing
