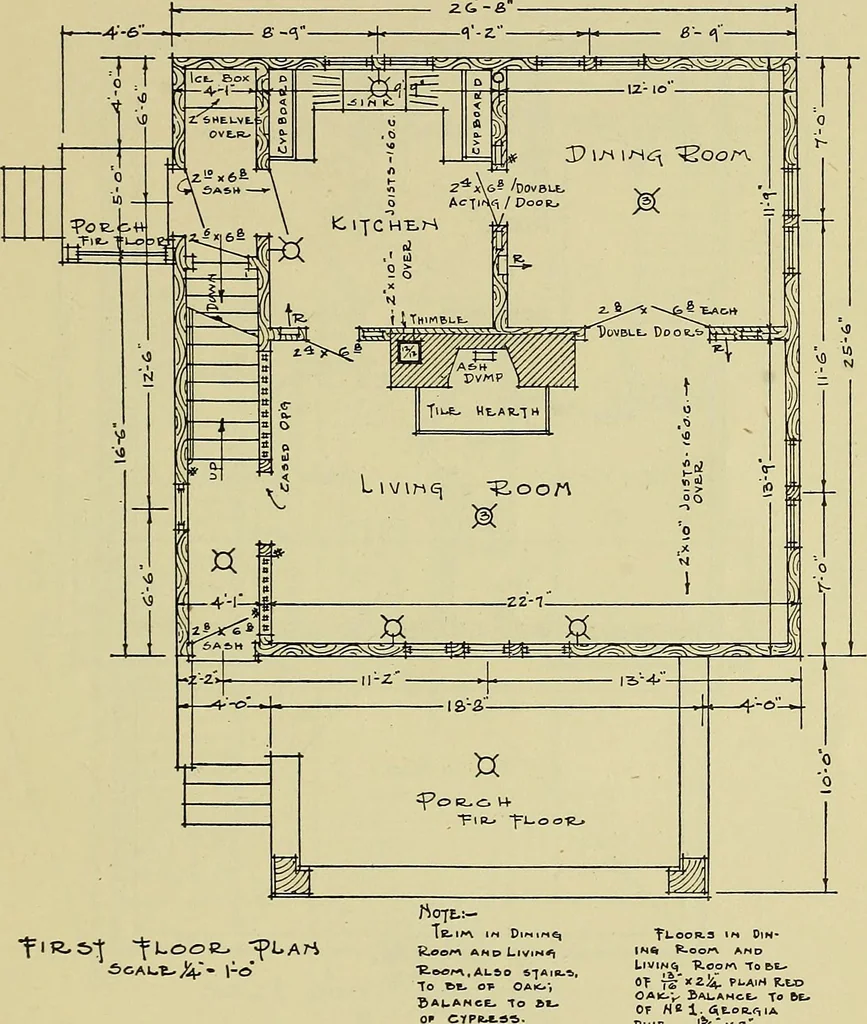

F/n/3h/ran - Drop B/ackCopper-Oj(/if/zeafB/acA Fig. 331C. Extra Plate MEASUREMENTS 295 directly over those on the first floor, as far as this arrangementcan be made. The position of the stairs must be considered andspace enough allowed for steps to reach the second floor. As a … LIV1N<^ ^a.oo^^ To Bt^OF «e 1. dit.l>R.<HIA Pine- , ^Ji«&. Fig. 332. First Floor Plan of House guide in laying out stairs, the sum of the tread and rise shouldbe about 17 to 17^, with a tread not less than 9 wide for frontstairs or 8 wide for back stairs. 296 MECHANICAL DRAWING In…
