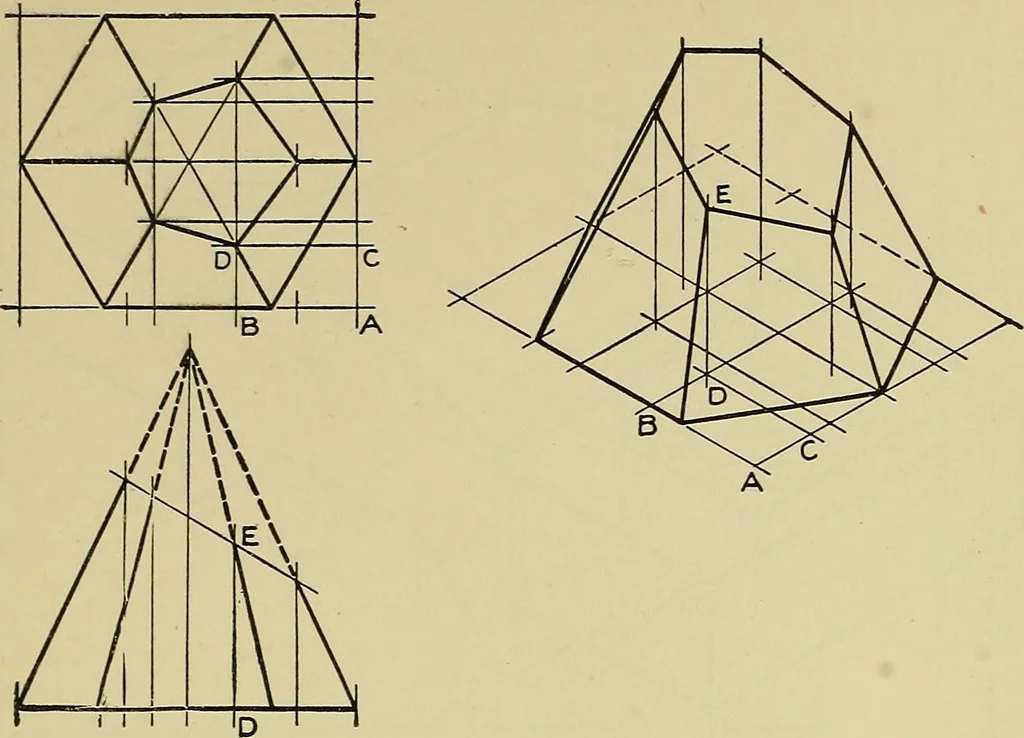

d by three coordinates as shown.The lengths A B, B D, and D E are taken from the orthographicviews and laid off on the isometric in the directions parallel toeach of the three axes, respectively. Isometric Circles. Circles may be drawn by locating pointsas described above, or by the four-center… … Fig. 344. Locatiiv^g Points on Non-Isometric Lines Using Three Coordinates
