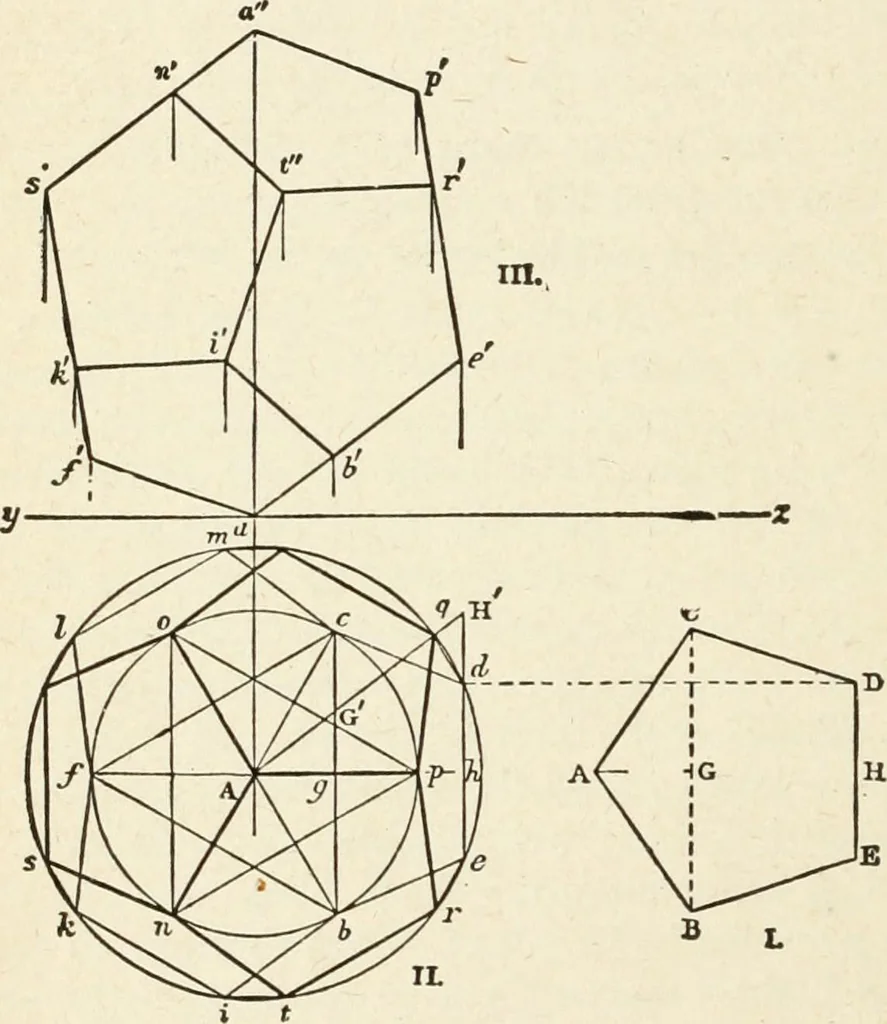

the hori-zontal projection of A G; but A G is a part of A H, andthe projection of that line is required for one of thefaces of the solid; therefore as AG:Ag::AH:x. Inother words, the length, the length of x may be ob- 52 MODERN CARPENTRY tained by drawing a fourth proportion of the threelines it… … Fig. 29. assumed pyramidal base b c f. Since A G is a portionof A H, A G will be so also. Produce A G, therefore,to H, making AH equal to AH (No. 1) and from Hlet fall a perpendicular on A g produced, which givesh the point sought. Produce H h, and carry on it the SOLID GEOMETRY 53 length H D or H…
