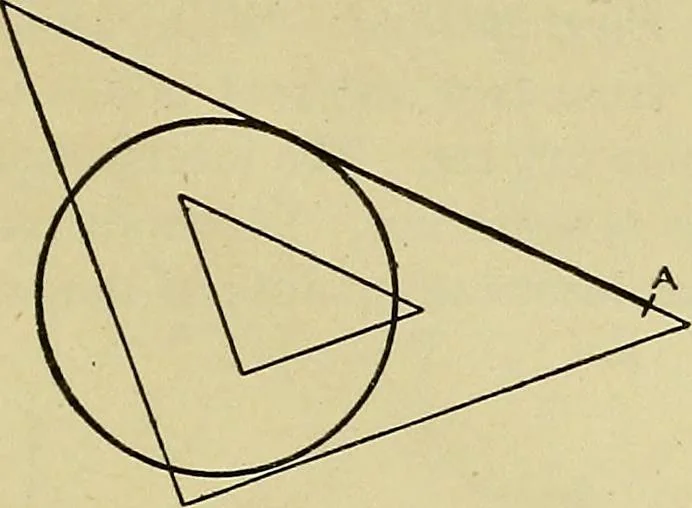

Fig. 371. To Construct a Tangent to a Circle Through a Point OutsideTHE Circle FBOBLEM 8Given: A circle and a point outside the circle.Required: To draw a tangent to the circle through thepoint. GEOMETRICAL CONSTRUCTIONS 325 Instructions: First MetJiod. With a radius A B and centerat A, describe… … Fig. 372. To Construct a Tangent to a Circle Throlgh a Point withTHE Triangle Second Method. The tangent may be drawn with a straightedge, as shown in Fig, 372. The point of tangency may befound as shown in Fig. 195, page 184. PROBLEM 9 Given: Two arcs. Required: To draw a line tangent to both…
