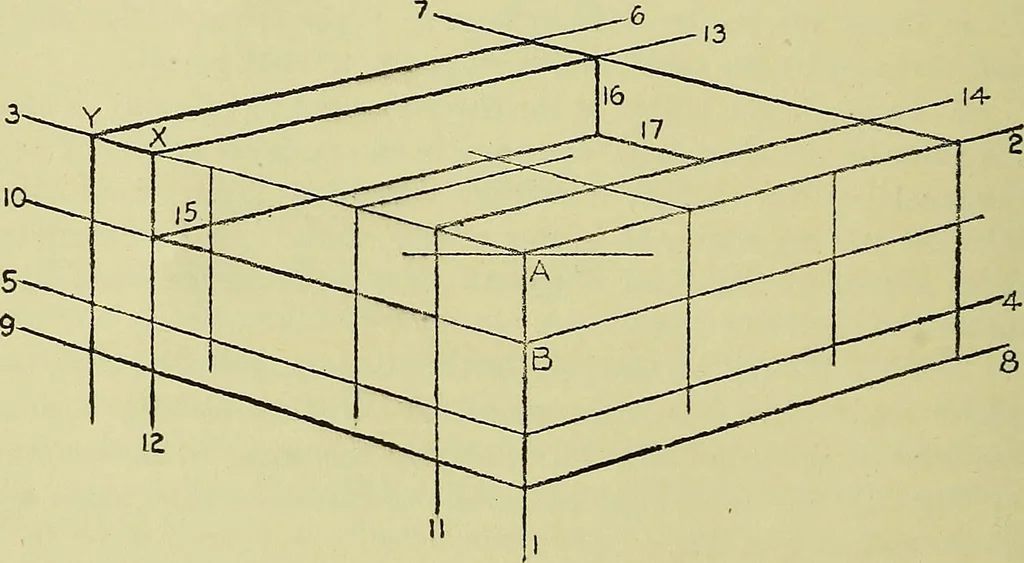

Fig. 25. Constructive Stage. Enclosing Solid same dimensions as the open space which holds the edges of thesandpaper, locate B, y.^ below A, and draw line 10 converging … Fig. 26. Constructive Stage. Complete with line 3, Fig. 26. Lay off from A on line 3 a distance repre-senting y^ The principle of foreshortening applied here willmake this distance slightly greater than one-half of the width PERSPECTIVE SKETCHING 37 of the face of the cube. Draw line 11. lu the…
