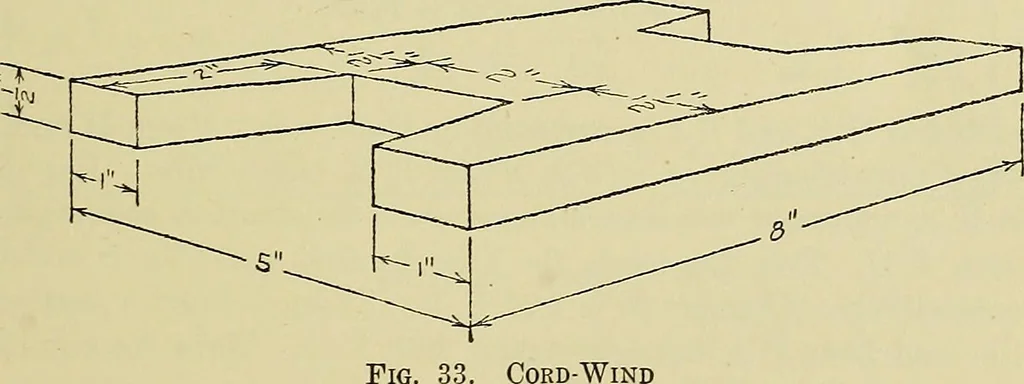

Fig. 32. Constructive Stage Complete 2. To draw the cord-wdnd full size with the upper surface 5below the level of the eye, and turned so that the longer edgesvanish toward the left instead of toward the right. 3. To draw any similar object assigned by the instructor. … Fig. Cord-Wind Instructions: 1. Locate the upper front corner of the measure cube A a3directed under, To Center a Perspective Sketch on a Sheet,page 40. 42 MECHANICAL DRAWING 2. Complete the enclosing solid as in Plate 2, page 35, takingcare to secure the necessary convergence. As it is the aim…
