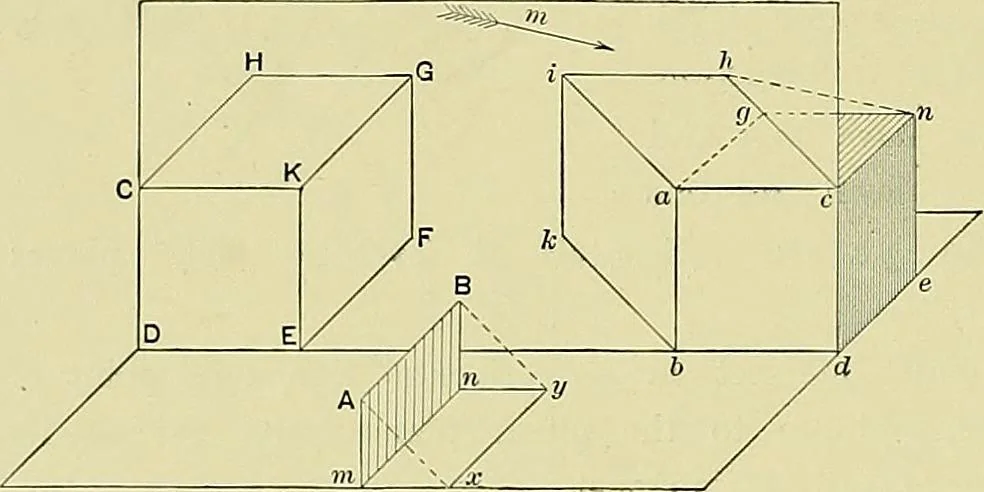

248 THEORETICAL AND PRACTICAL GRAPHICS. CMAPTEB XVI. OBLIQUE OE CLINOGRAPHIC PROJECTION. —CAVALIER PERSPECTIVE. —CABINET PROJECTION. MILITARY PERSPECTIVE. Exg-. •5=07. … 643. If a figure be projected upon a plane by a system of parallel lines that are oblique tothe plane, the resulting figure is called an oblique or dinographic projection, the latter term being morefrequently employed in the applications of this method to crystallography. Shadows of objects inthe…
