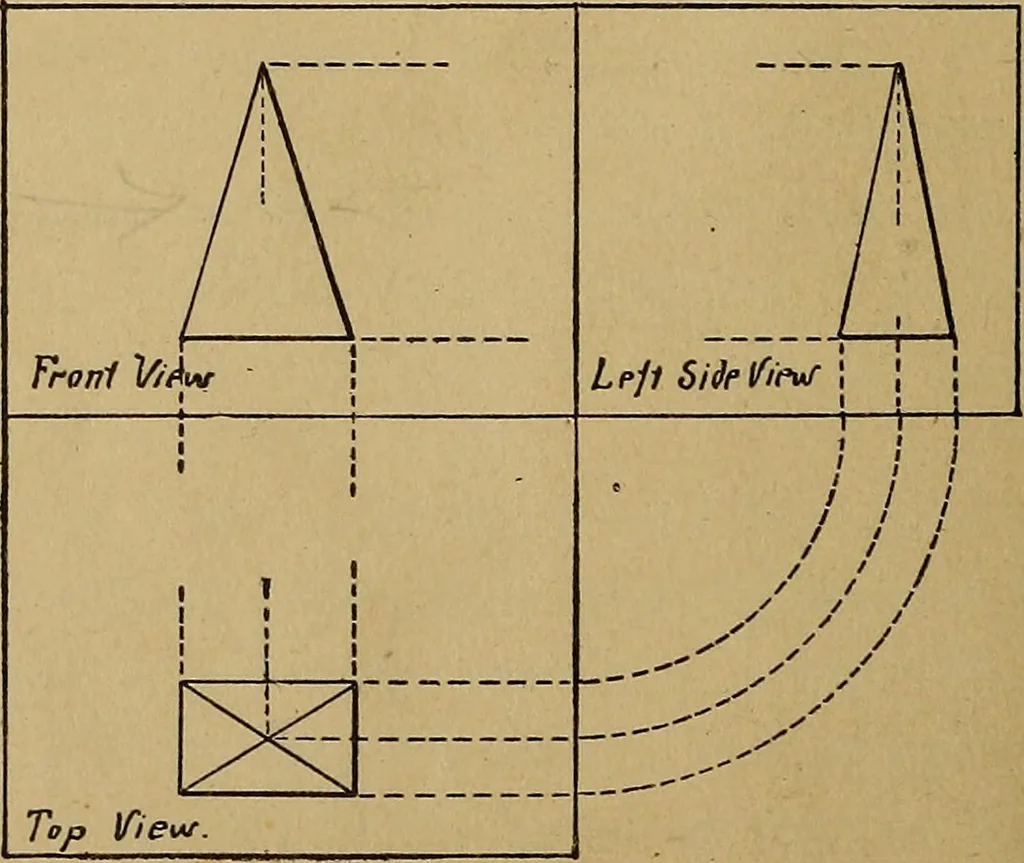

I Fig. 36. … Fig. 37. ARRANGEMENT AND NAMES OF VIEWS. 105 Fig. 36 represents the vertical and horizontal planes forming thefirst angle, with a side vertical plane placed at the right. The drawingalso shows a pyramid placed within this angle, and its projectionsupon the three planes. When the planes are…
