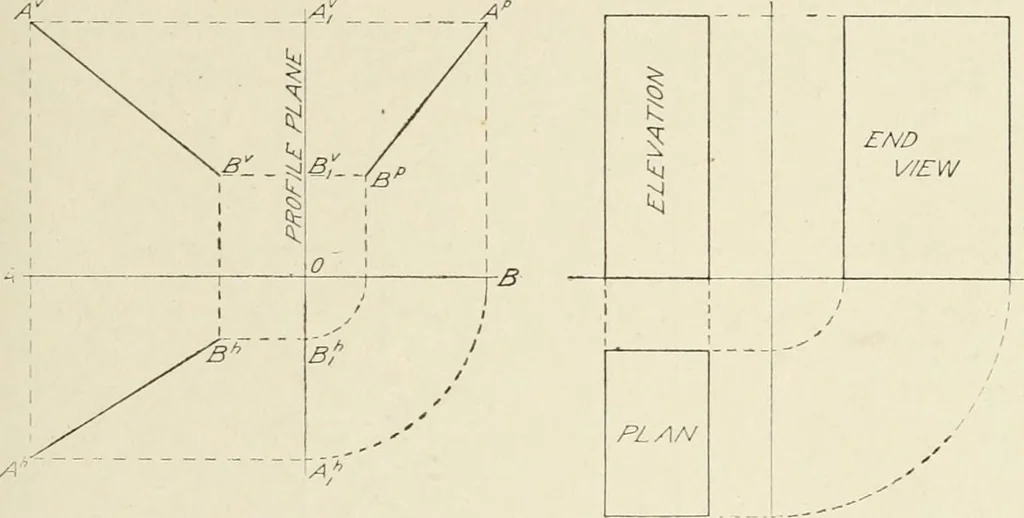

ion- of the line shotvs its true length, Fig. 103, Fig. 104, and Fig. 105. PROFILE PLANE A third plane perpendicular to both coordinate planes, and henceto the ground line, is called a profile plane. This plane is vertical inposition, and may be used as a plane of projection. A projection onthe… … Fig. 106. Projections of a Line on Hori-zontal, Vertical, and Profile Planes Fi£ 107. Three Projections of aRectangular Prism A projection on this plane is found in the same way as on theV plane, i. e., by perpendiculars drawn from points on the object. Since, however, the profile plane is…
