Mechanical drawing : a manual for teachers and students (1902)
Cross, Anson Kent · Boston : Ginn & Co. · leaf 128

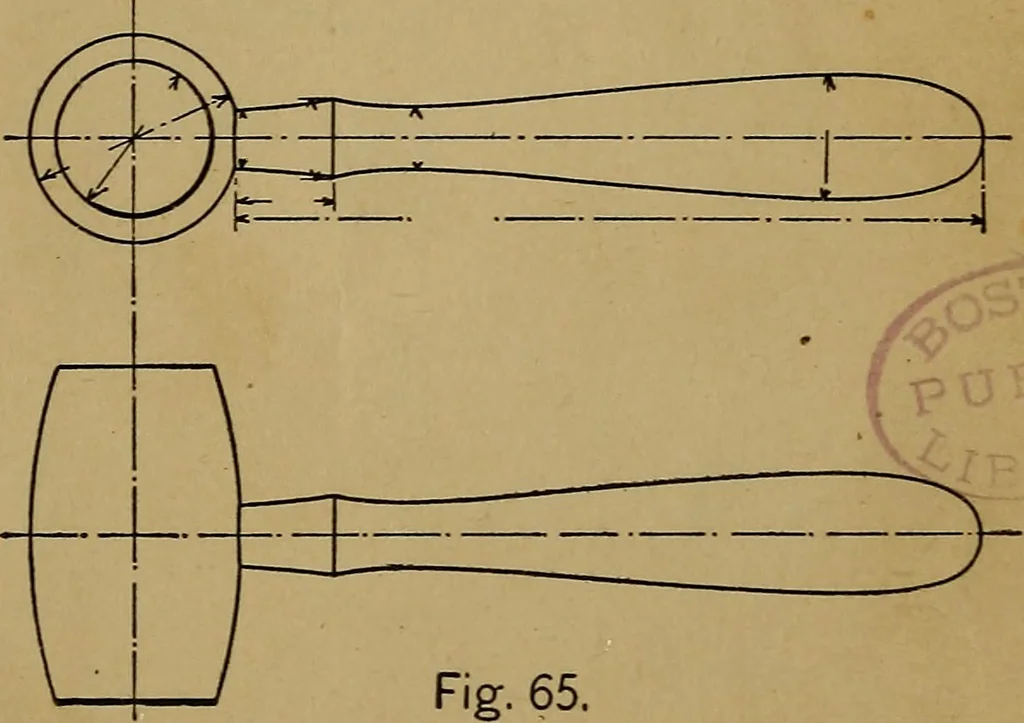

/ Fig. 64. … Fig. 65. I20 MECHANICAL DRAWING. PLATE V. Fig. 66. Top and front views of a ti7i coffee-pot. Draw the top view of the pot first; then the front view, adding thehandle and nose, first in this view, and then in the top view. Fig. 67. Front., and left side views, and a longitudinal section of atool…
