Mechanical drawing : a manual for teachers and students (1902)
Cross, Anson Kent · Boston : Ginn & Co. · leaf 132

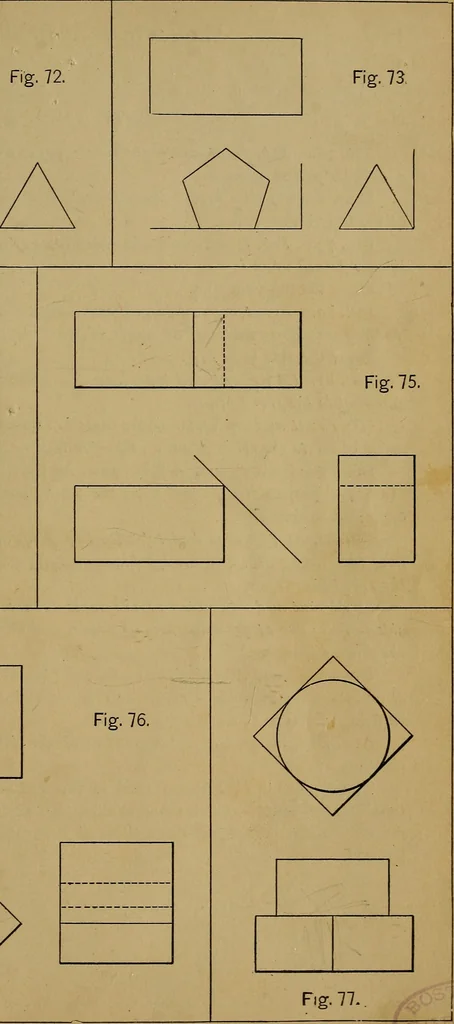

124 MECHANICAL DRAWING. PLATE VII: Fig. 78. Top^ front, and right side views of an hexagonal plinth witha circular plinth upon it. Draw the top view first. Make the width of the side view equal to 1-2of the top view. Fig. 79. Top^ front, and right side views pf a circular plinth with asquare plinth…
