Mechanical drawing : a manual for teachers and students (1902)
Cross, Anson Kent · Boston : Ginn & Co. · leaf 166

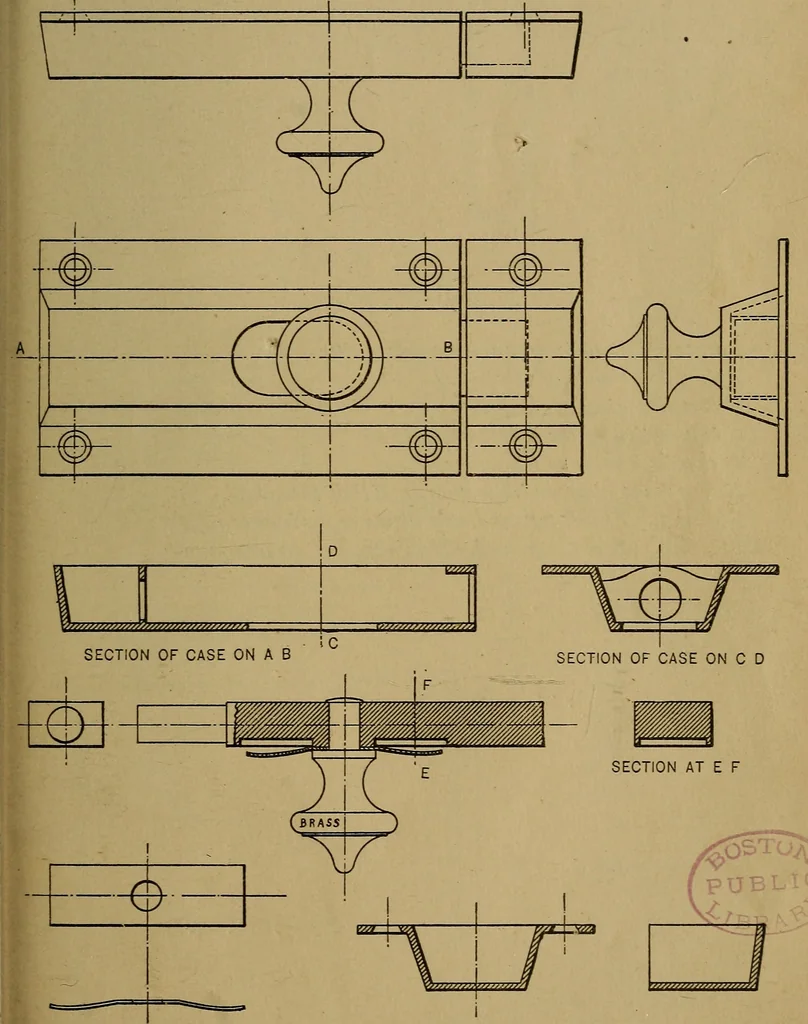

lt, withdetails of the same. Dotted lines are very confusing when numerous ; therefore when manywould be required it is customary to represent the different parts of an ob-ject separately. In this figure all the views are needed to make the construction clear. The ornamental tracery upon the object… … BRASS SPRING SECTIONS OF STRIKER 158 MECHANICAL DRAV/ING. PLATE XX. Fig. 116. Details of an iroti side ptdley. A is a front view of the pulley. B is a side view of the pulley. C is a section of the fraine on GH. D is a back view of the frame. E is a front view and a section on EF of the wheel. Fig.…
Mechanical drawing
