Mechanical drawing : a manual for teachers and students (1902)
Cross, Anson Kent · Boston : Ginn & Co. · leaf 26

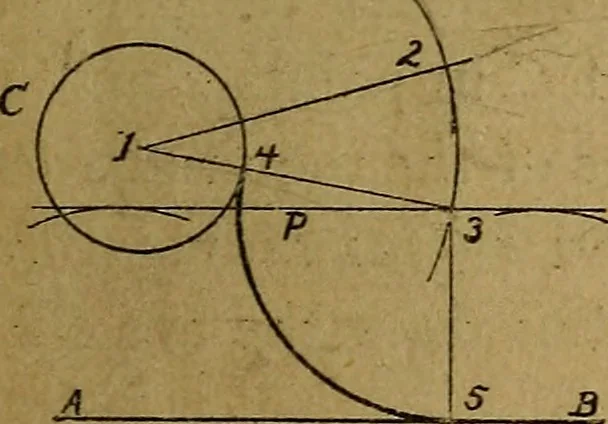

ular from j to AB gives J, the point of contact of the arc and AB, and a straight line from j to i gives 4, the point of contactof the arc and the circle. -Problem 24. — To dra7i> an arc of a givenradius CDtangent to two circles A and B. With I, the centre of the circle Ay ascentre and radius… … ■A-A
Mechanical drawing
