Mechanical drawing : a manual for teachers and students (1902)
Cross, Anson Kent · Boston : Ginn & Co. · leaf 85

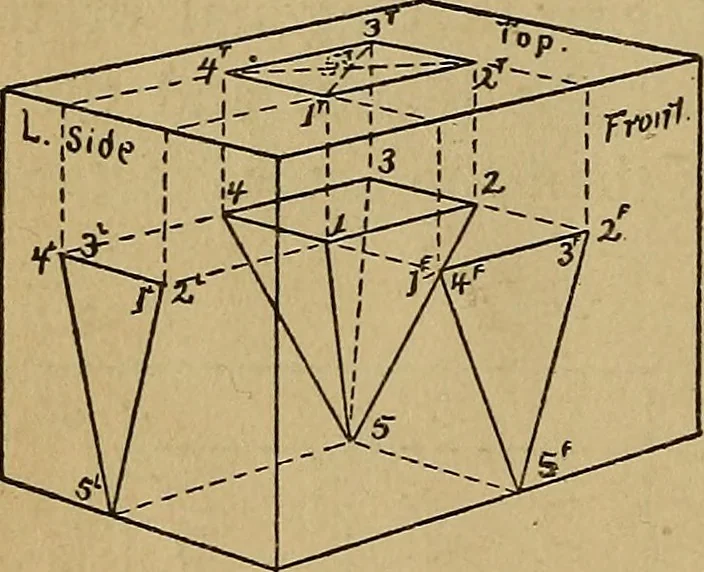

es ; the side view gives the length of the card, its relation to thefront and top planes, and its distances from these planes. lOS Views of a Solid. — Figs. 26 and 27 represent a rectan-gular pyramid whose axis is vertical and at given distances from theplanes of projection. Two edges of the base…
Mechanical drawing
