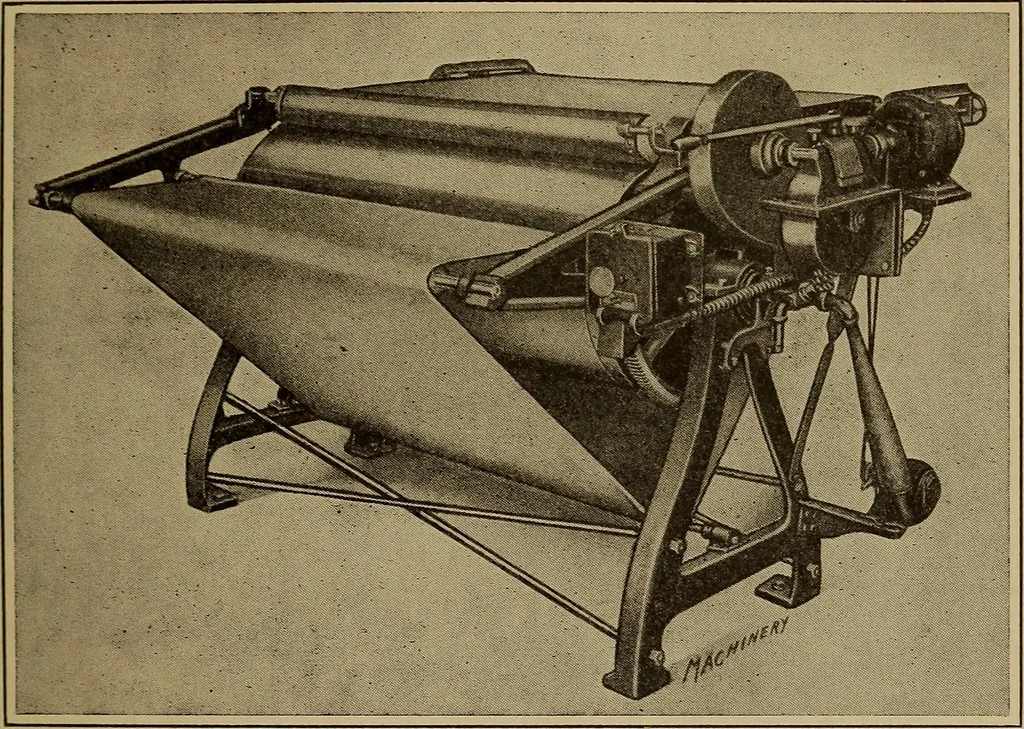

t PRINTING, WASHING AND DRYING 191 spray water upon them. In this way, the prints are washedand they are then ready to be dried. The wash water isdelivered by a series of pipes which extend the entire lengthof the belt. These pipes are equipped with spray nozzleswhich deliver water over the entire… … Fig. 5. Blueprint Drying and Ironing Machine After being washed according to the method described inthe preceding paragraph, the blueprint is taken up by a drybelt, which carries it over a stationary drier where the pre-liminary drying takes place. The print is then transferred toa heavy canvas…
