Mechanical drawing; a treatise on the drawing of mechanical and machine details (1920)
Jones, Franklin Day, 1879-1967 · New York, The Industrial press; [etc., etc.] · leaf 262

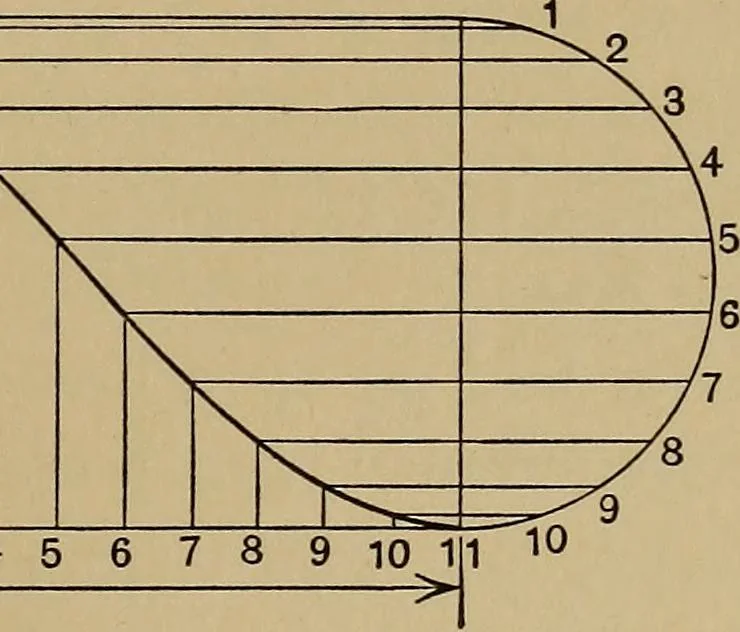

0 12 3 4 5 -CIRCUMFERENCE OF CAM B … Machinery Fig. 8. (A) Cam Curve for Uniform Motion. (B) Crank or Harmonic Motion Curve to start the follower gradually, increase the speed to maxi-mum near the middle of the stroke and then gradually reduceit as the end of the stroke and the point of reversal areapproached. Comparison of Uniform…
Mechanical drawing
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
