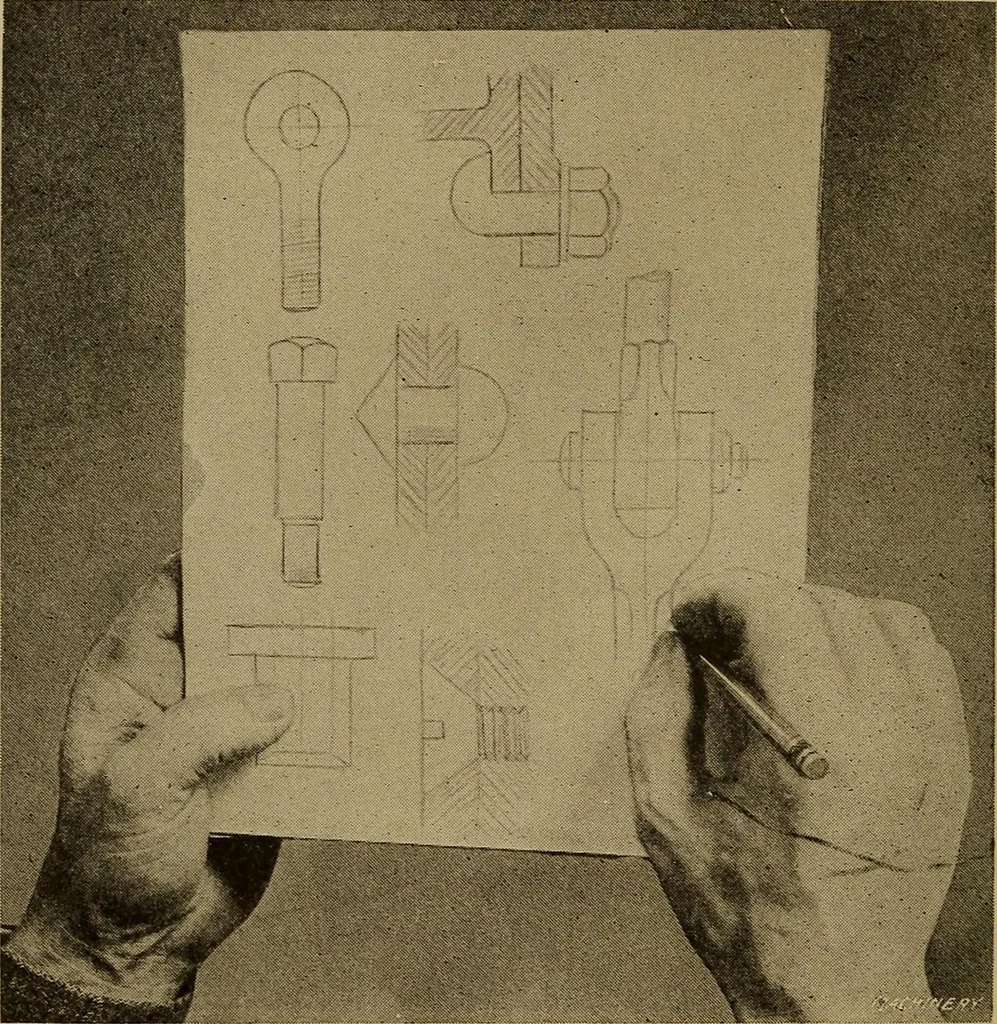

a plain pad is just asgood for many purposes. The cross-sectioned paper with its 3i8 MECHANICAL DRAWING guide lines accurately spaced is excellent when it is of especialimportance to make a sketch accurately to scale. Whenever possible, only one view is shown on a sketch,even though two views might… … Fig. 6. Sketching Small Details — An Exercise in drawing Linesand in proportioning Parts added to the sketch to avoid an extra view. If one sectionof a circular piece were of special shape or had a slot cut in it,an additional view might be advisable. The sketching of small details such as are…
